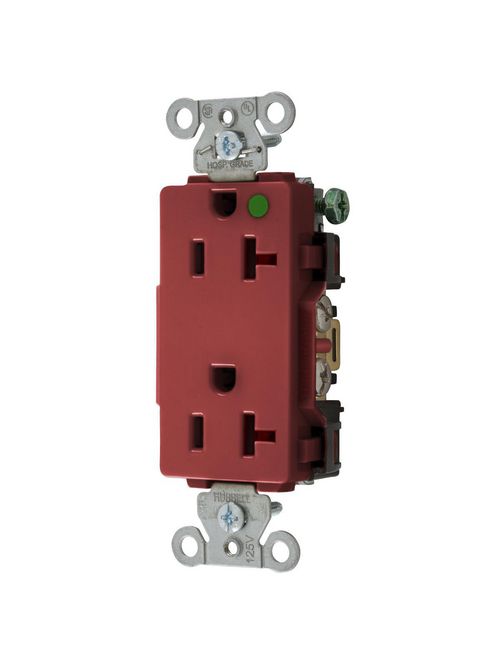

HWDK 2182RED RCPT DECO DUP HG HUBPR
Product image thumbnail 0
Product image thumbnail 1
$11.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 2182RED
North Coast Part # 1338201

Features

  • Triple wipe contacts
  • High impact resistant decorator face
  • Steel mounting strap

Specifications

General

  • Application: Hubbell-Pro Heavy Duty Hospital Grade
  • Color: Red
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Style Line Decorator Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hubbell-Pro
  • Style: Style Line decorator
  • Type: Duplex Receptacle
  • UPC: 783585196640

Dimensions

  • Dimensions: 3.28 in x 1.57 in x 1.15 in
  • Display Size: Standard Sized Product
  • Height: 1.15 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.57 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358519664
GTiN 00783585196640
Length 3.28 in
Width 1.57 in
Size 3.28 in x 1.57 in x 1.15 in
Color Red
Voltage 125 Volt
Type Duplex Receptacle
Material Nylon
Product Series Hubbell,Pro
Applications Hubbell-Pro Heavy Duty Hospital Grade
Height 1.15 in
Weight 0.15 lb
Wire Size 12-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
