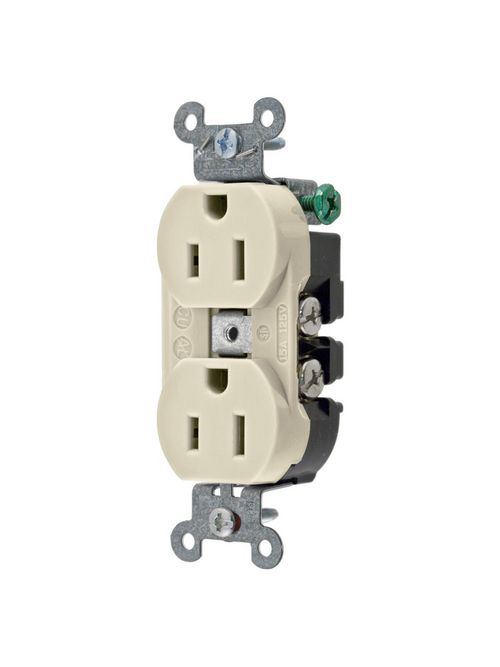

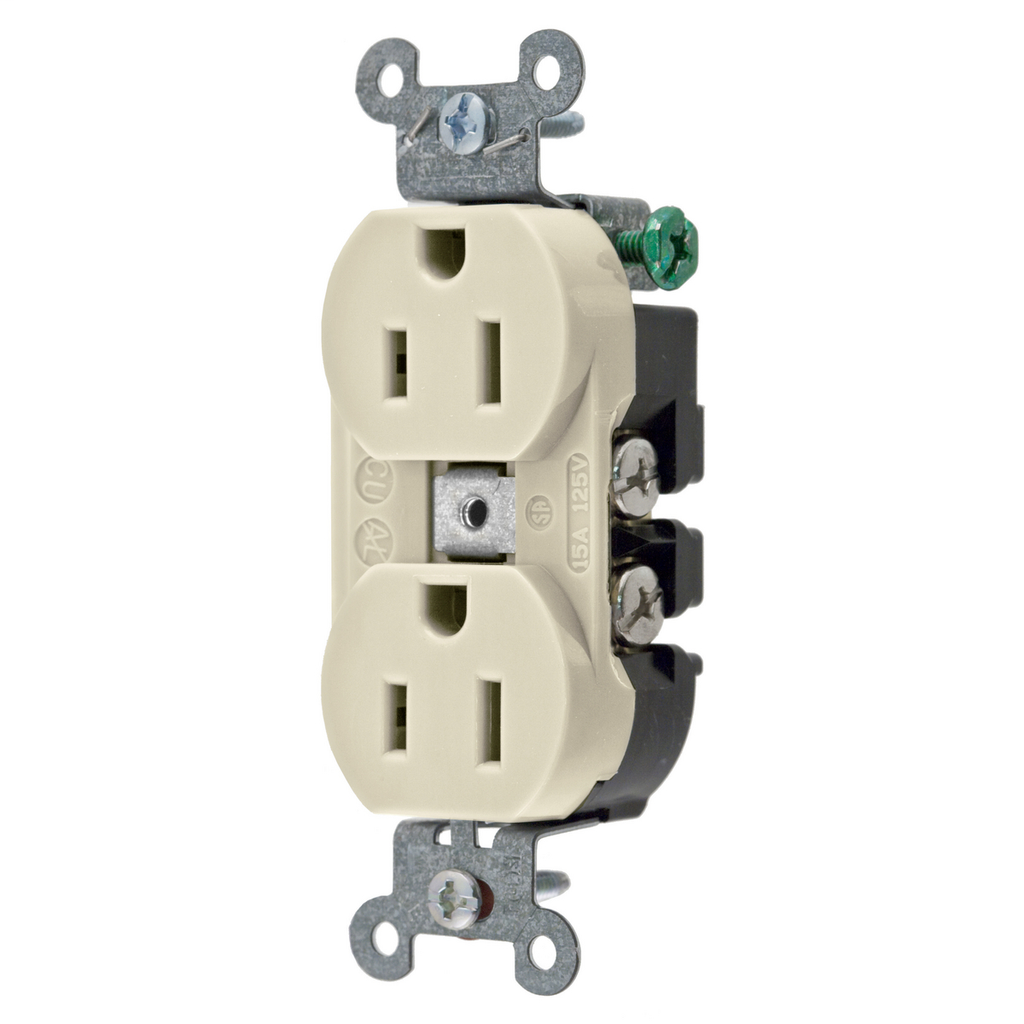

HWDK 5252AAL RCPT, DUP SB, HUBPRO,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$10.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5252AAL
North Coast Part # 214624

Features

  • Slender/compact design
  • Smooth face
  • Triple wipe contacts
  • 15A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Specifications

  • Product Type: Flush-receptacles
  • Color: Almond
  • Receptacle Style: Duplex
  • Face Shape: Traditional
  • Standard: NEMA
  • Amperage: 15A
  • Voltage: 125V
  • Poles and Wires: 2 Pole, 3-Wire Grounding
  • Wiring Method: Back and Side
  • Hospital Grade ?: No
  • Receptacle Grade: Hubbell-Pro Series
  • Face Style: Smooth Face
  • Other Available Colors: Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black, Red
  • NEMA No.: 5-15R
  • Horsepower: 0.5
  • Type: 2-Pole 3-Wire, Grounding
  • Rating: 15A, 125V
  • Certification: UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
  • Top Material: Nylon
  • Base Material: Nylon
  • Power Contacts Material: .030" (.8) Brass
  • Mounting Strap Material: .040" (1) Steel (Galvanized)
  • Auto Ground Clip Material: Stainless Steel
  • Mounting Screw Material: Steel-Zinc Plated
  • Dielectric Voltage: Withstands 2,000V minimum.
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
  • Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
  • Product Identification: Ratings are a permanent part of the device.
  • Flammability: UL 94 V2.
  • Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
  • Weight in LBs: 0.150

Product Type

Color

NEMA Configuration

Ordering Information

  • Device Color: Almond

Listings

  • UL File No. E2186
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA WD-6 Compliant

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
  • Terminal Identification: Terminal wire leads identified in accordance with UL 498

Environmental

  • Flammability: UL 94 V-2
  • Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)

Product Drawings / Installation Instructions

Instructions

Product

Overview

UPC 78358510973
Item Long Description Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Almond, Single Pack.
GTiN 00783585109732
Length 3.28 in
Width 1.41 in
Size Standard
Color Almond
Operating Temperature -40 C
Type Traditional
Material Thermoplastic
Applications Hubbell-Pro Heavy Duty Applications
Height 1.1 in
Weight 0.15 lb
Style Smooth Face
Wire Size 14-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
NEMA 5-15R
Number of Phases 1 Phase
TC Connection Back and Side Wired
Amperage 15 Amp
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Finish Smooth
Conductor Size 14-12 AWG
Mounting Type Screw
Connection Type Back and Side Wired
Grounding Self
Voltage 125 Volt
Grade Industrial
Base Material PBT
Face Material Nylon
Wire Count 3
