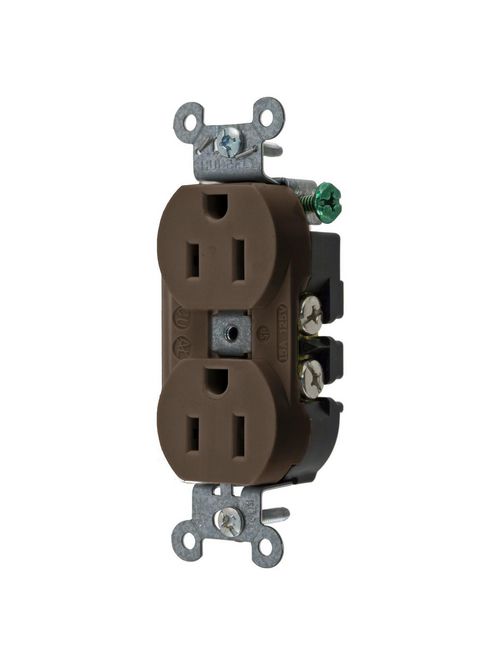

Hubbell Wiring Devices 5252AB 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Brown Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$4.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5252AB
North Coast Part # 69022

Features

  • Easy access split circuit tab
  • Smooth face
  • Triple wipe contacts
  • Wrap-around galvanized steel strap

Specifications

General

  • Application: Hubbell-Pro Heavy Duty
  • Color: Brown
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Thermoplastic/Composite
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Screw Mount
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Series: Hubbell-PRO
  • Size: Standard Sized Product
  • Style: Smooth Face
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • UPC: 783585109695

Dimensions

  • Dimensions: 3.28 in x 1.41 in x 1.1 in
  • Display Size: Standard Sized Product
  • Height: 1.1 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.41 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358510969
GTiN 00783585109695
Length 3.28 in
Finish Smooth
Width 1.41 in
Size Standard
Color Brown
Type Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Hubbell,PRO
Applications Hubbell-Pro Heavy Duty
Mounting Type Screw
Height 1.500 in
Weight 0.15 lb
Wire Size 14-12 AWG
Connection Type Back and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Hubbell Pro
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL File No. E2186
Enclosure Material Stainless Steel
Voltage 125 Volt
