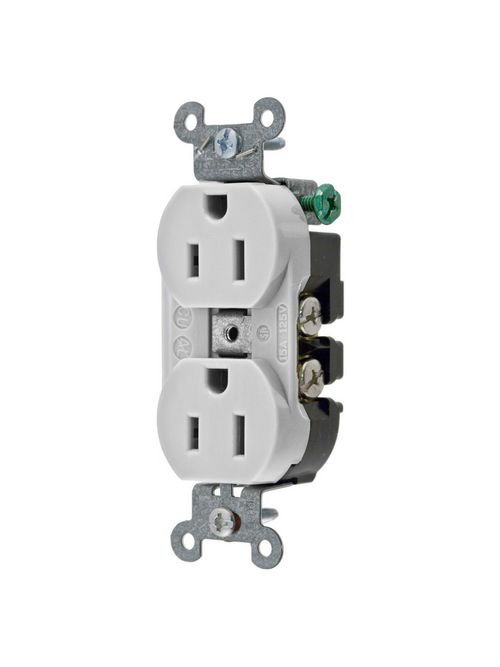

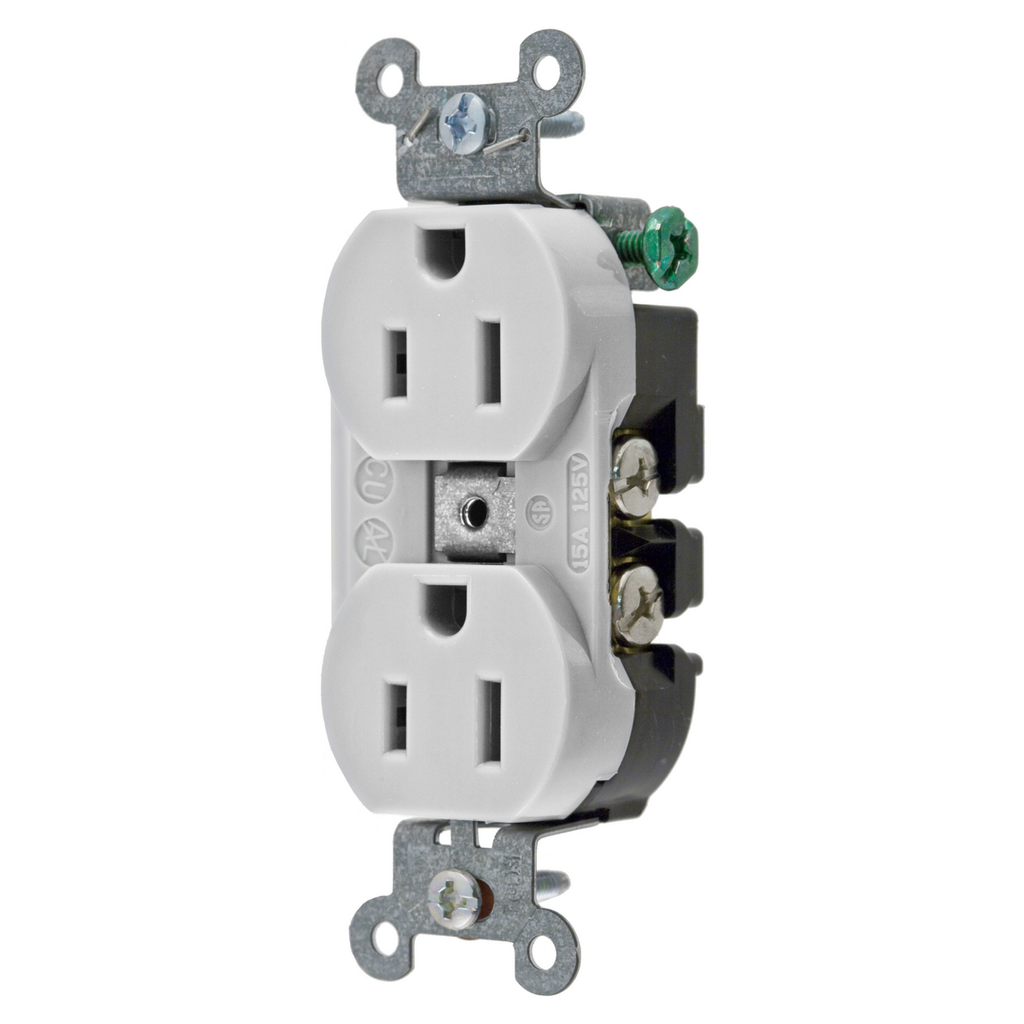

Hubbell Wiring Devices 5252AOW 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5252AOW
North Coast Part # 419612

Features

  • Slender/compact design
  • Smooth face
  • Triple wipe contacts
  • Self Grounding

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.41 in x 1.1 in
  • Each - Height: 1.200 in
  • Each - Length: 4.000 in
  • Each - Width: 1.500 in
  • Height: 1.1 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Hubbell-Pro Heavy Duty Specification Grade
  • Color: Office White
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.41 in x 1.1 in
  • Special Features: Self Grounding
  • Standard: Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL File No. E2186
  • Type: Standard Duplex
  • Wattage: 1875 W
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.41 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358512765
Item Long Description Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Office White
GTiN 00783585127651
Length 3.28 in
Width 1.41 in
Size Standard Sized Product
Color Office White
Type Traditional, Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Hubbell,PRO
Applications Heavy Duty
Mounting Type Screw
Height 1.200 in
Weight 0.3 lb
Wire Size 14-12 AWG
Connection Type Back and Side Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Self
TC Connection Back and Side Wired
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL File No. E2186
Enclosure Material Stainless Steel
Voltage 125 Volt
