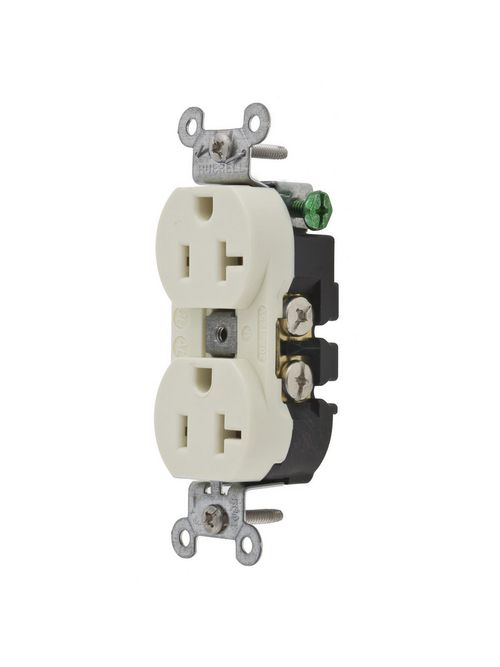

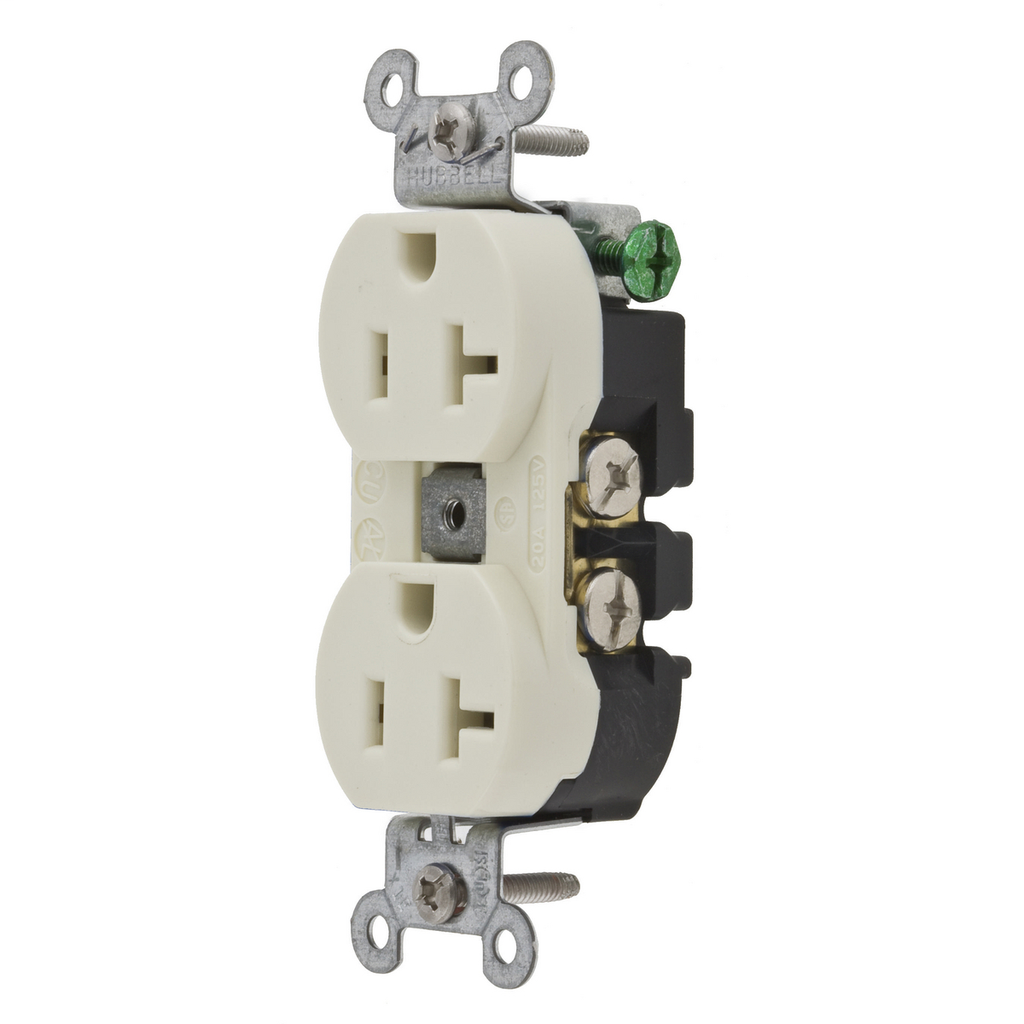

HCI 5352AAL RCPT, DUP SB, HUBPRO, 2
$5.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5352AAL
North Coast Part # 335632

Features

Self Grounding

  • Slender/compact design
  • Smooth face
  • Triple wipe contacts

Specifications

  • Application: Hubbell-Pro Heavy Duty
  • Color: Almond
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact °C

Performance

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Series: Hubbell-PRO
  • Style: Smooth Face
  • Type: Standard Duplex
  • UPC: 783585109794
  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Display Size: Standard Sized Product
  • Height: 1.09 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.41 in
  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Industry Standard(s)

  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL File No. E2186
  • Nema Rating: 5-20R
  • Carton Quantity: 10 EA

Overview

UPC 78358510979
GTiN 00783585109794
Length 3.28 in
Finish Smooth
Width 1.41 in
Size Standard Sized
Color Almond
Operating Temperature -40 C
Type Traditional, Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Applications Heavy Duty
Mounting Type Screw
Height 1.09 in
Weight 0.15 lb
Style Smooth Face
Wire Size 12-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
NEMA 5-20R
Number of Phases 1
Grounding Self
TC Connection Back and Side Wired
Amperage 20 Amp
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Voltage null
