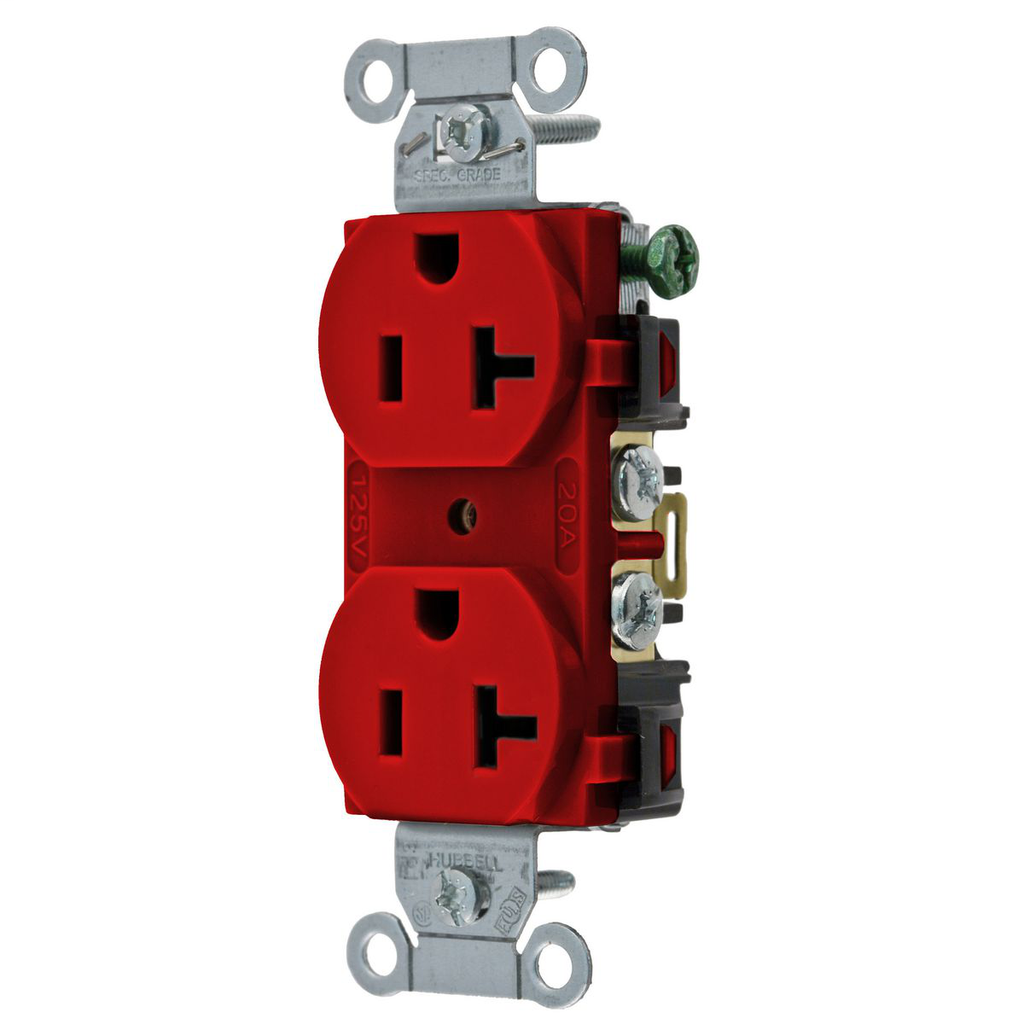

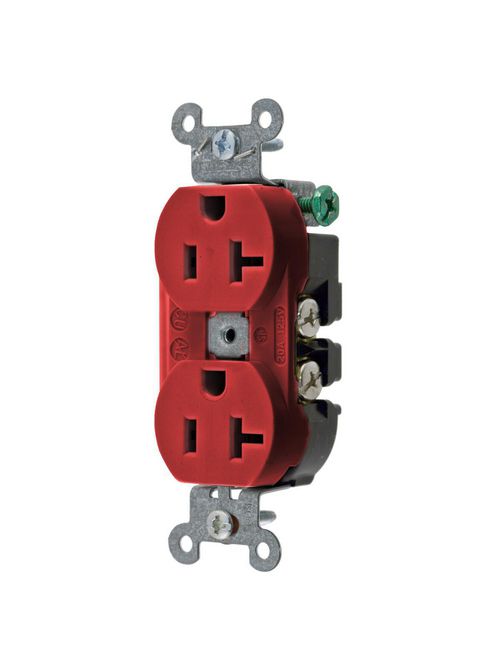

Hubbell Wiring Devices 5352AR 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Red Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5352AR
North Coast Part # 419621

Features

  • Easy access split circuit tab
  • Smooth face
  • Triple wipe contacts
  • Wrap-around galvanized steel strap
  • Self Grounding

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Each - Height: 1.200 in
  • Each - Length: 4.000 in
  • Each - Width: 1.500 in
  • Height: 1.09 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Hubbell-Pro Heavy Duty
  • Color: Red
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Mounting: Screw Mount
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.41 in x 1.09 in
  • Special Features: Self Grounding
  • Standard: UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #12 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.41 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358512772
Item Long Description Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red
GTiN 00783585127729
Length 3.28 in
Finish Smooth
Width 1.41 in
Size Standard
Color Red
Type Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Hubbell,PRO
Applications Hubbell-Pro Heavy Duty
Mounting Type Screw
Height 1.09 in
Weight 0.3 lb
Wire Size 12-10 AWG
Connection Type Back and Side Wire
Wattage 2000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Hubbell Pro
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL File No. E2186
Voltage 125 Volt
Temperature Rating Maximum continuous 75?C; minimum -40?C (w/o impact)
Dielectric Strength Withstands 2,000V minimum
