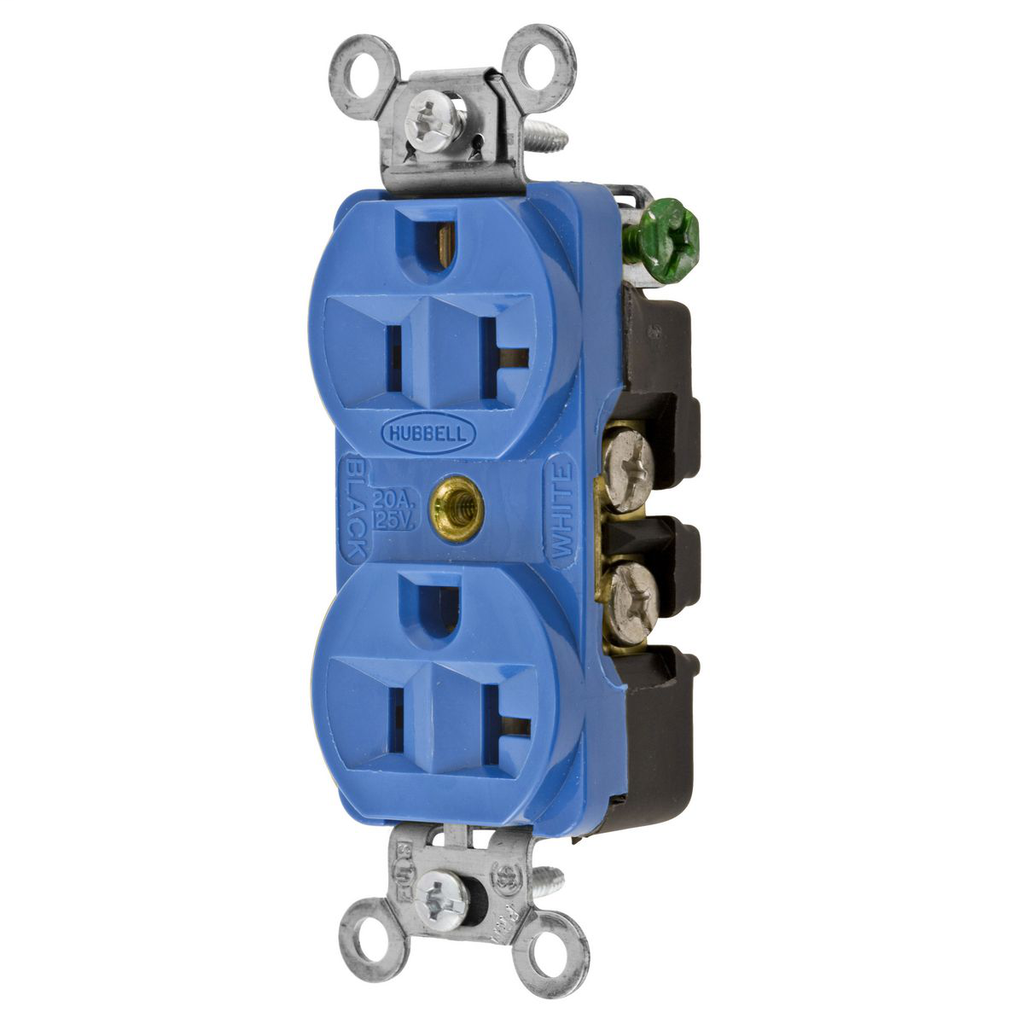

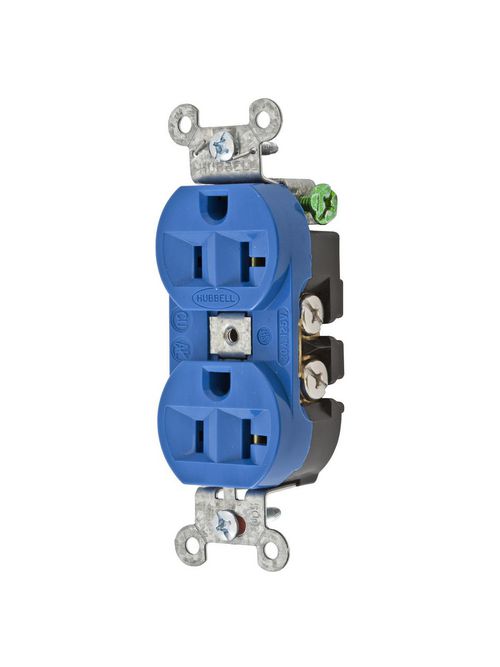

HWDK 5362BL RCPT, DUP SB, HUBPRO, 2
$6.04/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5362BL
North Coast Part # 419630

Features

  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts

Specifications

General

  • Application: Hubbell-Pro Extra Heavy Duty
  • Color: Blue
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Thermoplastic/Composite
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Screw Mount
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Series: Hubbell-PRO
  • Size: Standard Sized Product
  • Style: Finder Groove Face
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • UPC: 783585127736

Dimensions

  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Display Size: Standard Sized Product
  • Height: 1.09 in
  • Length: 3.28 in
  • Weight: 0.22 lb
  • Width: 1.41 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358512773
GTiN 00783585127736
Length 3.28 in
Width 1.41 in
Size Standard
Color Blue
Type Traditional
Material Thermoplastic
Product Series Hubbell,PRO
Applications Hubbell-Pro Heavy Duty Applications
Height 1.09 in
Weight 0.22 lb
Wire Size 14-12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw
Standard Fed. Spec. W-C-596,UL File No. E2186,NEMA WD-6,CSA 22.2,No. 42 File 285
Connection Type Back and Side Wired
Grounding Self
Voltage null
