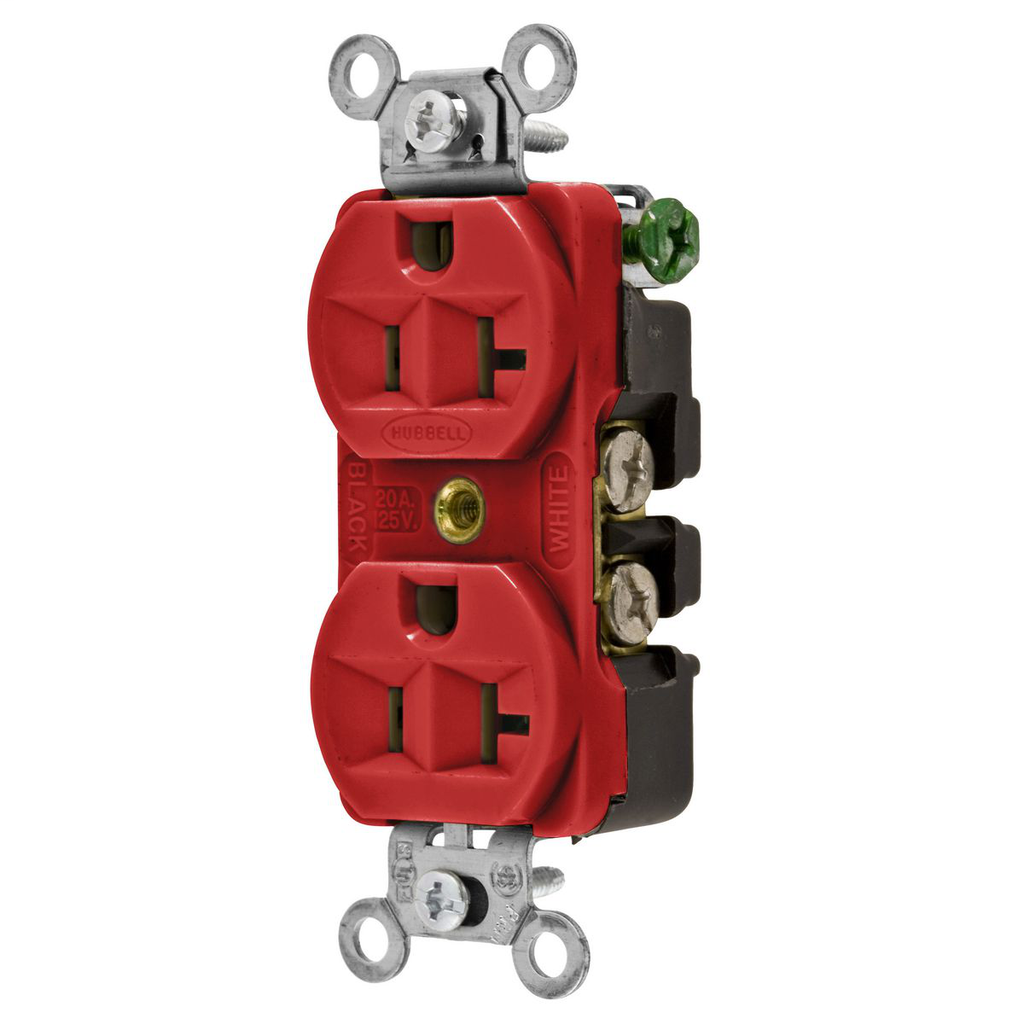

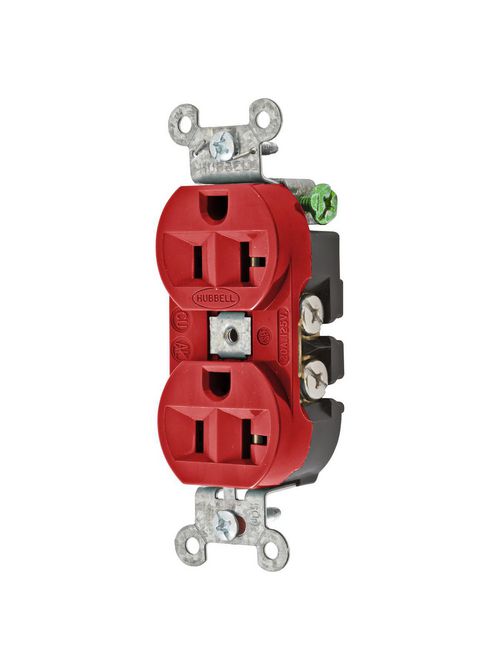

Hubbell Wiring Devices 5362R 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Red Straight Blade Duplex Receptacle
$6.04/ea
In Stock | 108 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 5362R
North Coast Part # 419646

Features

  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts

Specifications

General

  • Application: Hubbell-Pro Extra Heavy Duty
  • Color: Red
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Thermoplastic/Composite
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Screw Mount
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Series: Hubbell-PRO
  • Size: Standard Sized Product
  • Style: Finder Groove Face
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • UPC: 783585127774

Dimensions

  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Display Size: Standard Sized Product
  • Height: 1.09 in
  • Length: 3.28 in
  • Weight: 0.22 lb
  • Width: 1.41 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358512777
GTiN 00783585127774
Length 3.28 in
Width 1.41 in
Size Standard Sized
Color Red
Type Standard
Material Thermoplastic/Composite
Conductor Size 14-12 AWG
Product Series PRO,Hubbell
Applications Hubbell-Pro Heavy Duty
Mounting Type Screw
Height 1.09 in
Weight 0.22 lb
Wire Size 14-12 AWG
Wire Type Grounding
Connection Type Screw Terminal, Back and Side Wired
Wattage 2000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Hubbell Pro
Standard CSA 22.2,UL File No. E2186,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285
Voltage null
