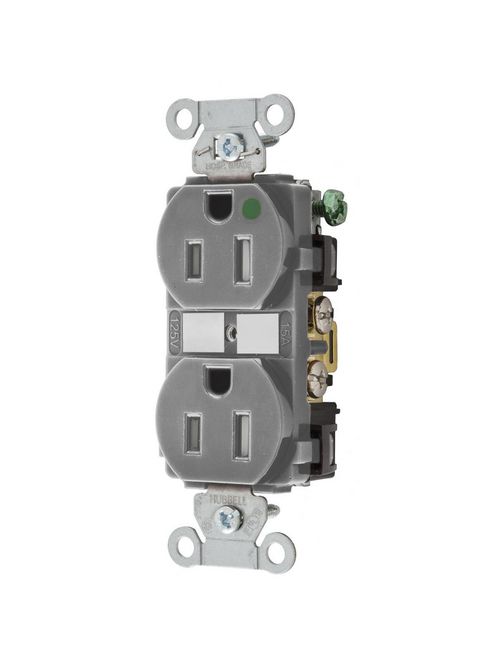

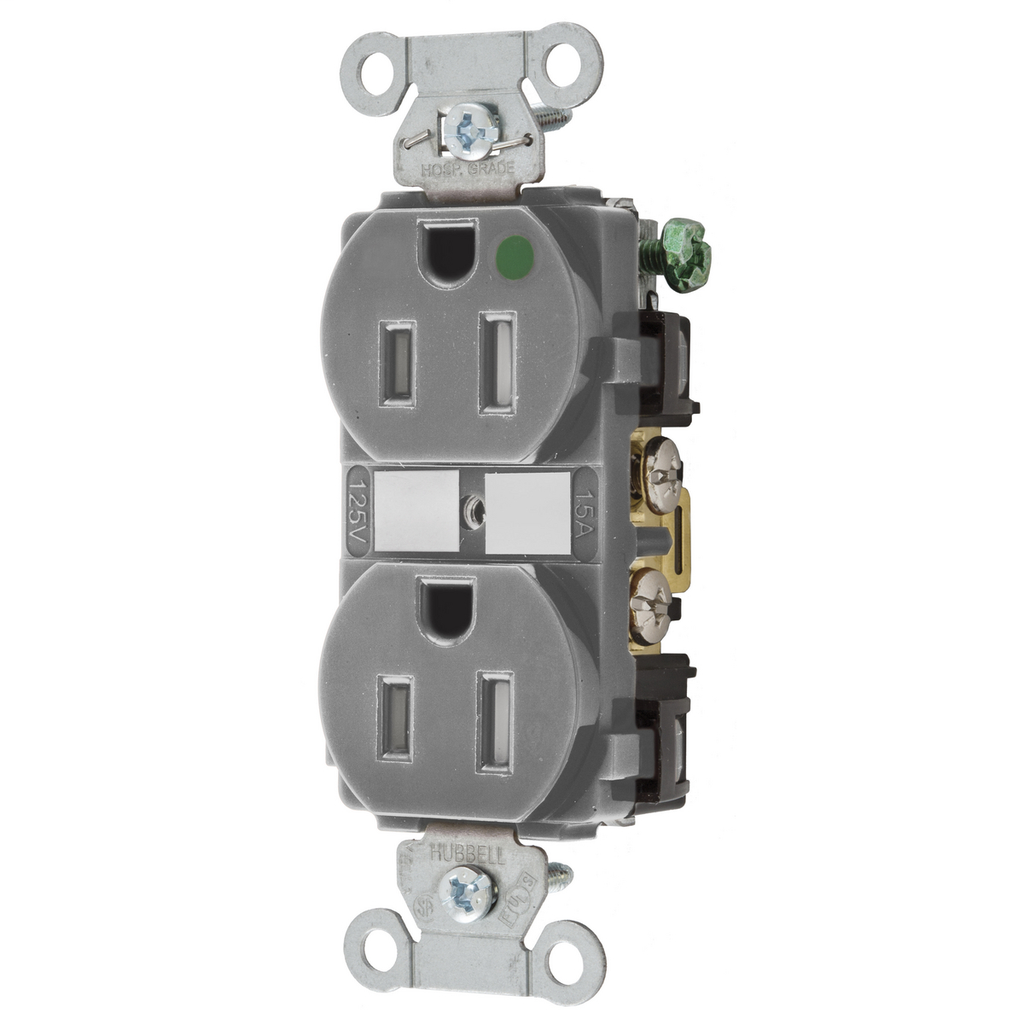

HWDK 8200GYTRA HUBBELL-PRO HG DPLX
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$15.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 8200GYTRA
North Coast Part # 1550448

Features

  • Tamper-resistant shutter complies with national electrical code requirements
  • Triple wipe contacts
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap
  • Tamper Resistant

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.57 in x 1.15 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.15 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Hubbell-Pro Heavy Duty Hospital Grade
  • Color: Gray
  • Dielectric Strength: Withstands 2,000V minimum
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.57 in x 1.15 in
  • Special Features: Tamper Resistant
  • Standard: Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: Receptacle
  • Voltage Rating: 125 VAC
  • Wattage: 1875 W
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.57 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358554211
Item Long Description Straight Blade Devices, Tamper Resistant Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3- WireGrounding, 15A 125V, 5-15R, Gray
GTiN 00783585542119
Length 3.28 in
Width 1.57 in
Color Gray
Voltage 125 Volt
Type Receptacle
Material Nylon
Product Series Hubbell,Pro
Height 1.15 in
Weight 0.2 lb
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Size 3.28 in x 1.57 in x 1.15 in
Applications Hubbell-Pro Heavy Duty Hospital Grade
Wire Size 14-10 AWG
Dielectric Strength Withstands 2,000V minimum
