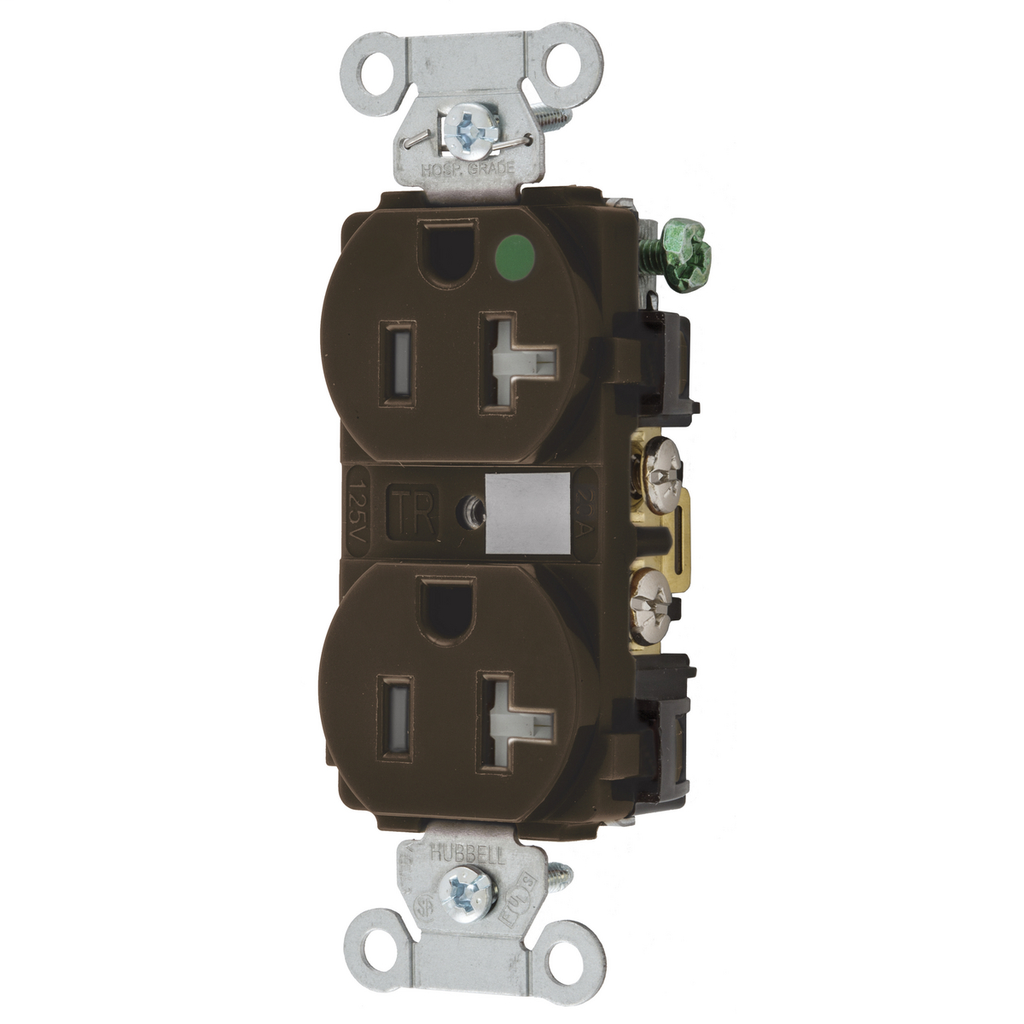

HUBW 8300TR HUBBELL-PRO HG DPLX20A/125V TR BR
$22.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 8300TR
North Coast Part # 933356

Features

  • Tamper-resistant shutter complies with national electrical code requirements
  • Triple wipe contacts
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap

Specifications

  • Face: Nylon
  • Base: PBT
  • Power Contacts: Brass
  • Ground Contact: Brass
  • Clamping Plate: Plated steel
  • Mounting Strap: Galvalized steel
  • Automatic Self-grounding Staple: Stainless steel
  • Mounting Screws: Zinc plated steel

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Environmental

  • Flammability: UL 94V-2
  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #12-10 AWG stranded or solid copper wire only.
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA

Ordering Information

  • Description: Hospital grade, tamper-resistant, smooth face
  • Device Color: Brown

Listings

  • UL Listed to UL498 File No. E2186
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant

Complementary Products

  • Wallplate or Weatherproof Cover: Duplex Opening

Overview

UPC 78358519705
Color Brown
Voltage 2,000 Volt
Face Material Nylon
Family Brand Name Hubbell
