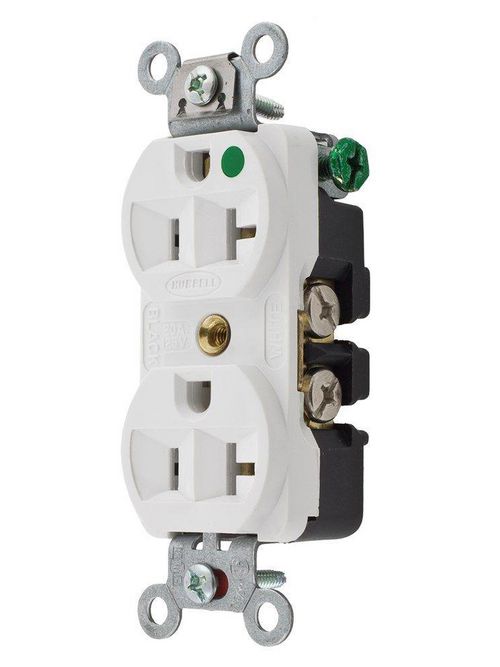

Hubbell Wiring Devices 8300W 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Straight Blade Duplex Receptacle

Specifications

• Straight Blade Receptacle Rating: 20A, 125V
• Face: High Impact-Resistant Chemical-Resistant Nylon
• Straight Blade Listings and Approvals: UL Listed Fed Spec, CSA Certified
• Straight Blade NEMA Configuration: 5-20R
• Product Identification: Ratings are a permanent part of the device.
• Straight Blade Product: Duplex Receptacle
• Straight Blade Receptacle Color: White
• Mounting Yoke: Steel-Zinc Plated
• Straight Blade Receptacle Wiring Scheme: 2 Pole, 3 Wire Grounding
• SELECTSPEC Product Type: Straight Blade Products
• Straight Blade Product Grade: Hospital Grade
• Terminal Accommodation: #14 to #10 AWG Copper Conductors Only.
• Base: Thick Walled High Impact Resistant Nylon
• Flammability: UL 94V2
• Features: Multiple Drive Screws, Pre-Tensioned Ground Contact, Large Oxide Cutting Terminal Screws, High Grade, Bronze Alloy Triple Wipe Power Contacts.
• Current Interrupting: Certified for current interrupting at full rated current.
• Contacts/Blade Material: Brass Alloy
• Max Working Voltage: 250V AC or DC
• Operating Temperatures: Maximum Continuous: 60 deg C, minimum: -40 deg C. (w/o impact).
• Terminal Identification: Terminals identified in accordance with UL 498 (Brass, White, Green).
• Dielectric Voltage: Withstands 2,000V Minimum
• Product Advantages:: The Select Spec hospital grade receptacle is specifically designed to provide safety and withstand demanding environments found in hospitals.
• Temperature Rise: Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated direct current.
• Straight Blade Product Style: Finder Groove Face, Back and Side Wired
