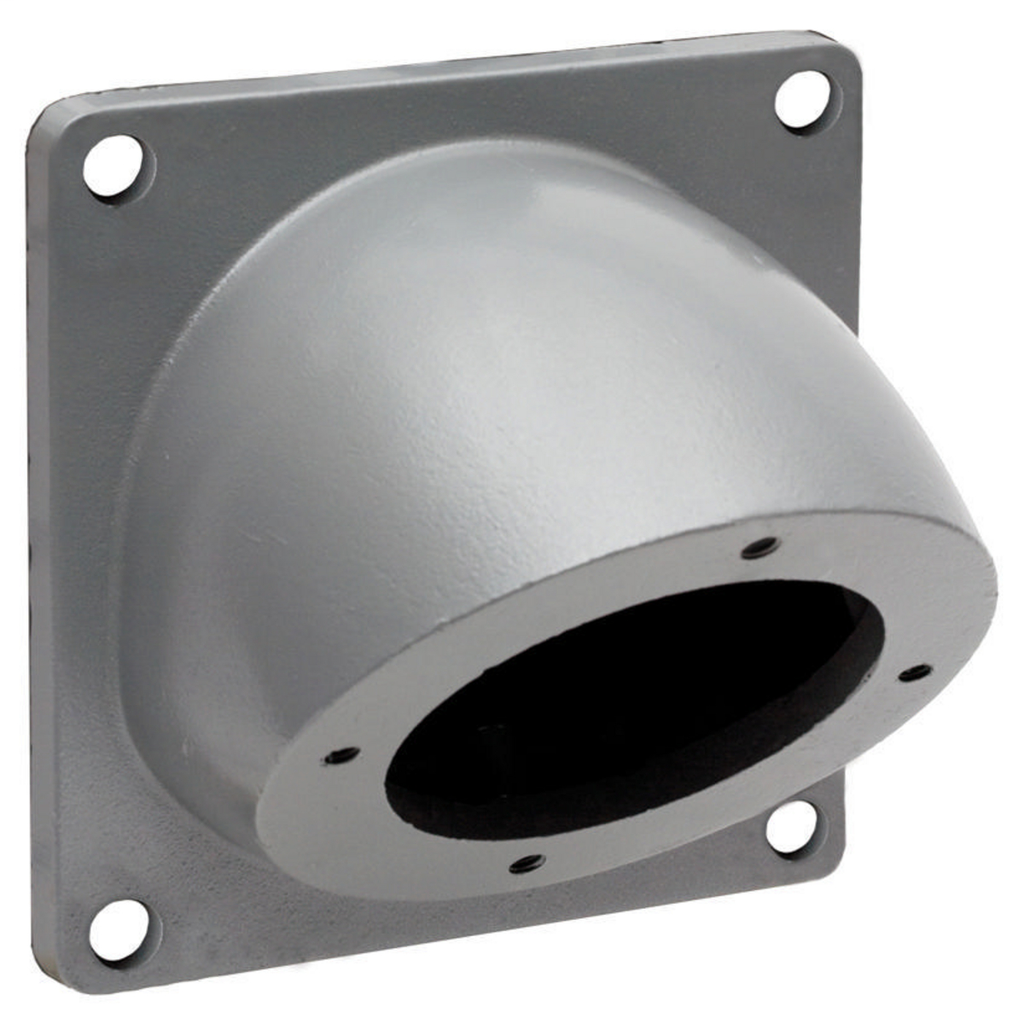

HWDK AA20045 PS, INS, RECP, ANGLE A
$301.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # AA20045
North Coast Part # 681209

Specifications

General

  • Application: Metallic
  • Construction: Cast
  • Environmental Conditions: Watertight
  • Item Type: Mounting Box
  • Knockouts: None
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Outlets: Accepts 1-Device
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Operating Temperatures - Max. Continuous: 75° C | Min. Continuous: -40° C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Series: Back Boxes and Adapters
  • Style: 45 Degree
  • Temperature Range: Limited By Device
  • Type: Four-Way Back Box
  • UPC: 783585810072

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 200 A
  • Current Rating: 200 A
  • Phase: Three Phase
  • Wattage: 120000

Conductor Related

  • Wire Size: #2 AWG to #4/0 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Overview

UPC 78358581007
GTiN 00783585810072
Length 13.200 in
Width 9.300 in
Size Standard Sized Product
Color Gray
Type Angled Adapter
Material Thermoplastic
Product Series Back Boxes And Adapters
Applications High Ampacity Connections
Height 7.800 in
Wire Size 2-0000 AWG
Wattage 120,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 200 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand IEC 309 Pin and Sleeve Devices
Standard UL
Voltage null
