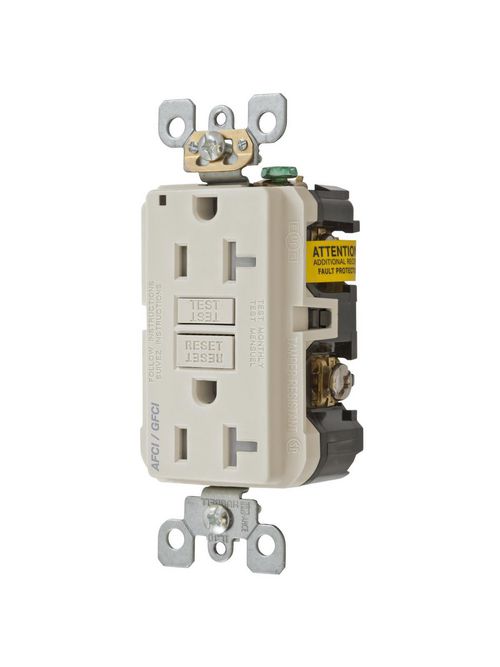

HWDK AFGF20TRLA 20A COMB AF/GF REC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$43.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # AFGF20TRLA
North Coast Part # 1610761

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • EU RoHS Indicator: Contact Manufacturer
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • UPC: 883778430084 783585037745

Dimensions

  • Weight: 0.30 lb

Electrical Ratings

  • Connectivity: Pressure Terminal Screws
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 88377843008
GTiN 00883778430084
Length 5.250 in
Width 3.300 in
Size Standard Sized Product
Type Duplex Receptacle
Applications Electrical Safety
Height 2.200 in
Wire Size 14-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arc Fault/GFCI
Weight 0.30 lb
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Current 20 A
Voltage 125 Volt
