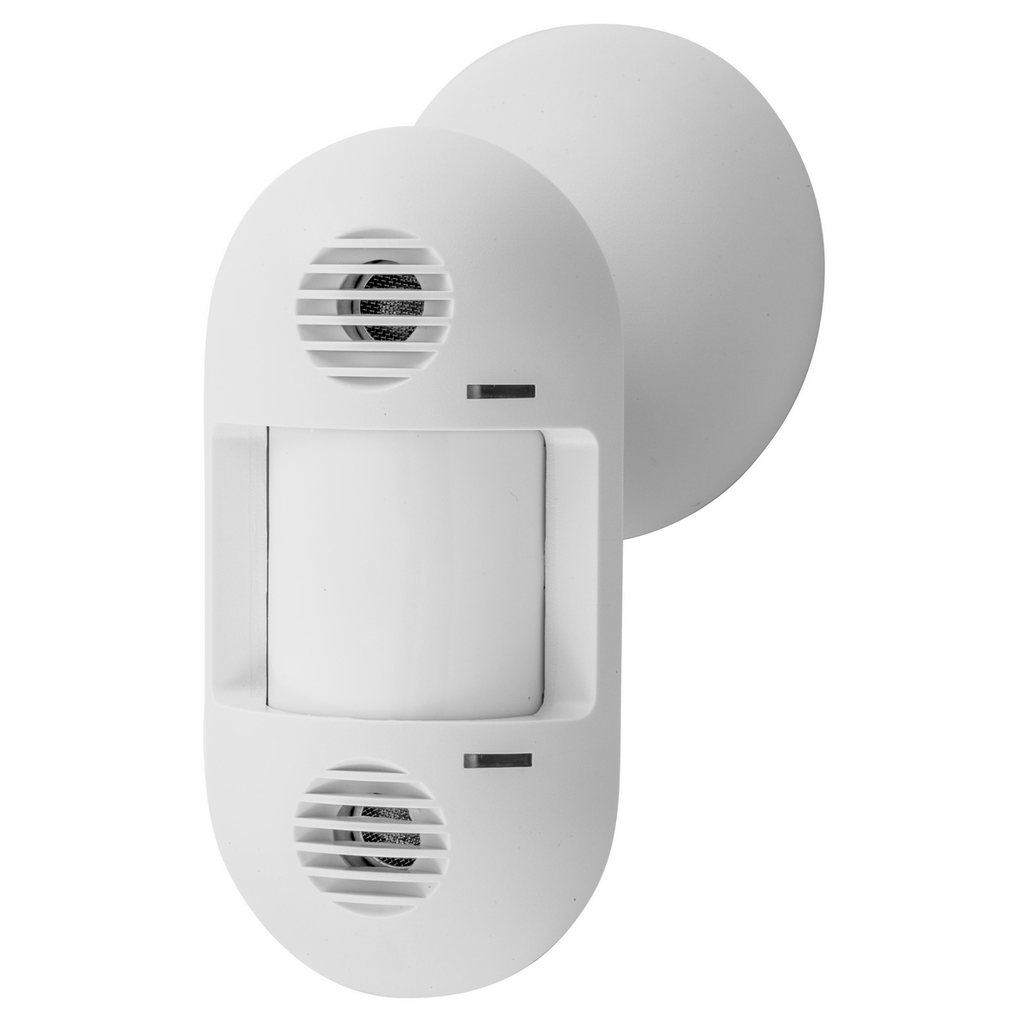

Hubbell Wiring Devices ATD1600WRP 24 VDC 1600 Square Foot White Ultrasonic and Passive Infrared Adaptive Wall Mount Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$399.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # ATD1600WRP
North Coast Part # 271842

Features

  • Dual (ultrasonic and passive infrared), low voltage sensor with photo cell and isolated relay
  • Coverage 1600 sq. ft.
  • Adaptive technology - "Install and forget" operation
  • 110° coverage provides complete room sensing when corner mounted
  • Swivel mounting bracket included for wall or ceiling mounting

Specifications

General

  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Humidity: 0% to 95% non-condensing relative humidity
  • Indicator(s) Type: PIR= Red LED, Ultrasonic= Green LED
  • Item Type: Ceiling and Wall Mount Sensors
  • Load Capacity: Load Is A Function Of The Control Unit
  • Material: ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Wall Mount
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Cycles: 6,000 Cycles Minimum
  • Operating Temperature: 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
  • Performance: Controls - Ambient Light - 1 to 1000 foot candles | Controls - Sensitivity - Adaptive 0 to 100% | Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes | Electrical - Isolated Relay - Normally open and normally closed, terminals available | Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit | Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour | Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity | Sensing Indicators - Passive Infrared - Red LED | Sensing Indicators - Ultrasonic - Green LED
  • Photocell: Yes
  • Series: Dual
  • Storage Temperature Range: -20°F to 150°F (-29°C to 65°C)
  • Style: Wall Mount
  • Type: Sensors
  • UPC: 783585349213

Dimensions

  • Diameter: 1.5 in
  • Height: 6 in
  • Width: 2 in

Electrical Ratings

  • Sensitivity: Adaptive 0 to 100%
  • Supply Voltage: Low Voltage V
  • Voltage Rating: 24 VDC
  • Voltage Rating Description: 24V DC

Certifications and Compliance

  • Industry Standard(s): ASHRAE 90.1 Compliant | cULus Listed To UL244A

Logistics

  • Carton Quantity: 10

Overview

UPC 78358534921
GTiN 00783585349213
Length 7.100 in
Width 2 in
Color White
Operating Temperature 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Voltage 24 Volt
Type Sensors
Material ABS
Product Series Dual
Applications Wall Mount
Height 6 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Sensing Range 8 to 12 Feet Mounting Height
Indicator PIR= Red LED, Ultrasonic= Green LED
Operating Cycles 6k
Sub Brand HMOSS
Standard ASHRAE 90.1,CULus,UL244A
Environmental Conditions Indoor Dry Unless Protected By Additional Means
