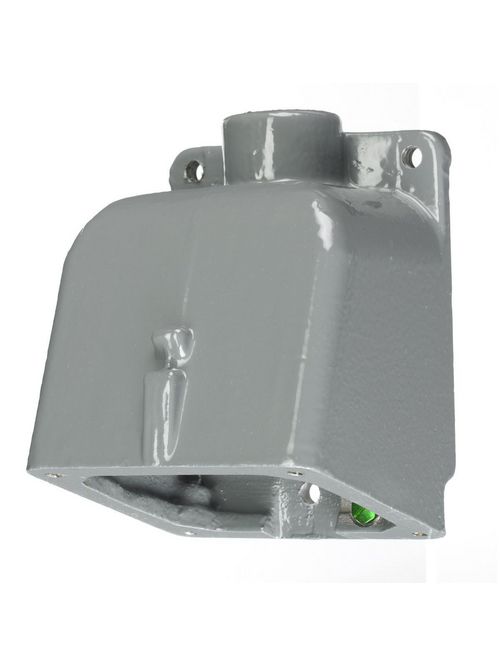

Hubbell Wiring Devices BB201W 3/4 Inch Metallic 15 Degrees Watertight IEC Pin and Sleeve Back Box
Product image thumbnail 0
Product image thumbnail 1
$81.51/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BB201W
North Coast Part # 212582

Specifications

General

  • Application: Metallic
  • Color: Gray
  • Construction: Cast
  • Item Type: Mounting Box
  • Knockouts: 3/4" NPT Hub
  • Material: Aluminum
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Outlets: Accepts 1-Device
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Moisture Resistance - IP54 Suitability
  • Style: For 20 And 30A Watertight Safety Shroud Receptacles And Inlets
  • Temperature Range: Limited By Device
  • Type: Back Box
  • UPC: 783585390055

Dimensions

  • Dimensions: 4 in x 3.75 in x 3 in
  • Display Size: For 16, 20, 30 and 32 Amp Devices
  • Height: 3 in
  • Length: 4 in
  • Weight: 1.4 lb
  • Width: 3.75 in

Conductor Related

  • Cable Entry: Through Hub

Certifications and Compliance

  • Industry Standard(s): UL Raintight and External Icing Test

Logistics

  • Carton Quantity: 10

Overview

UPC 78358539005
GTiN 00783585390055
Length 4 in
Width 95.3 mm
Size For 16, 20, 30 and 32 Amp Devices
Color Gray
Type Accepts 1-Device Outlet, Rectangular, 15 Angled
Material Aluminum
Applications 16, 20, 30 and 32 A Devices
Mounting Type Screw
Height 3 in
Weight 1.4 lb
Family Brand Name Hubbell Wiring Device Kellems
Construction Cast
Carton Qty 10
Cable Entry 3/4 in NPT Hub
Sub Brand Shrouded Watertight Twist-Lock and IEC Pin and Sleeve
Standard External Icing Test,UL Raintight
