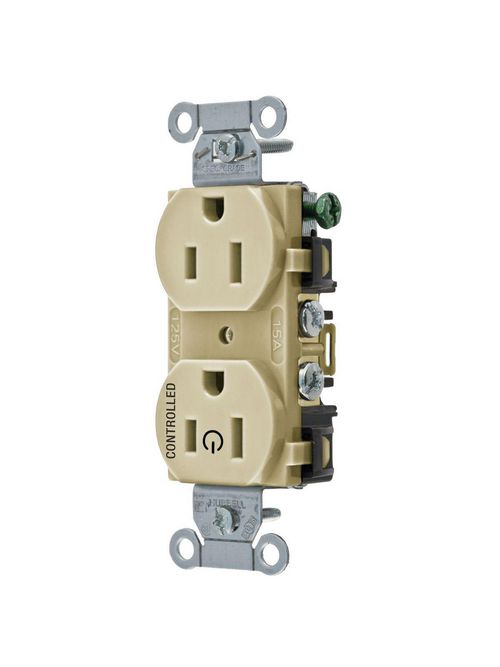

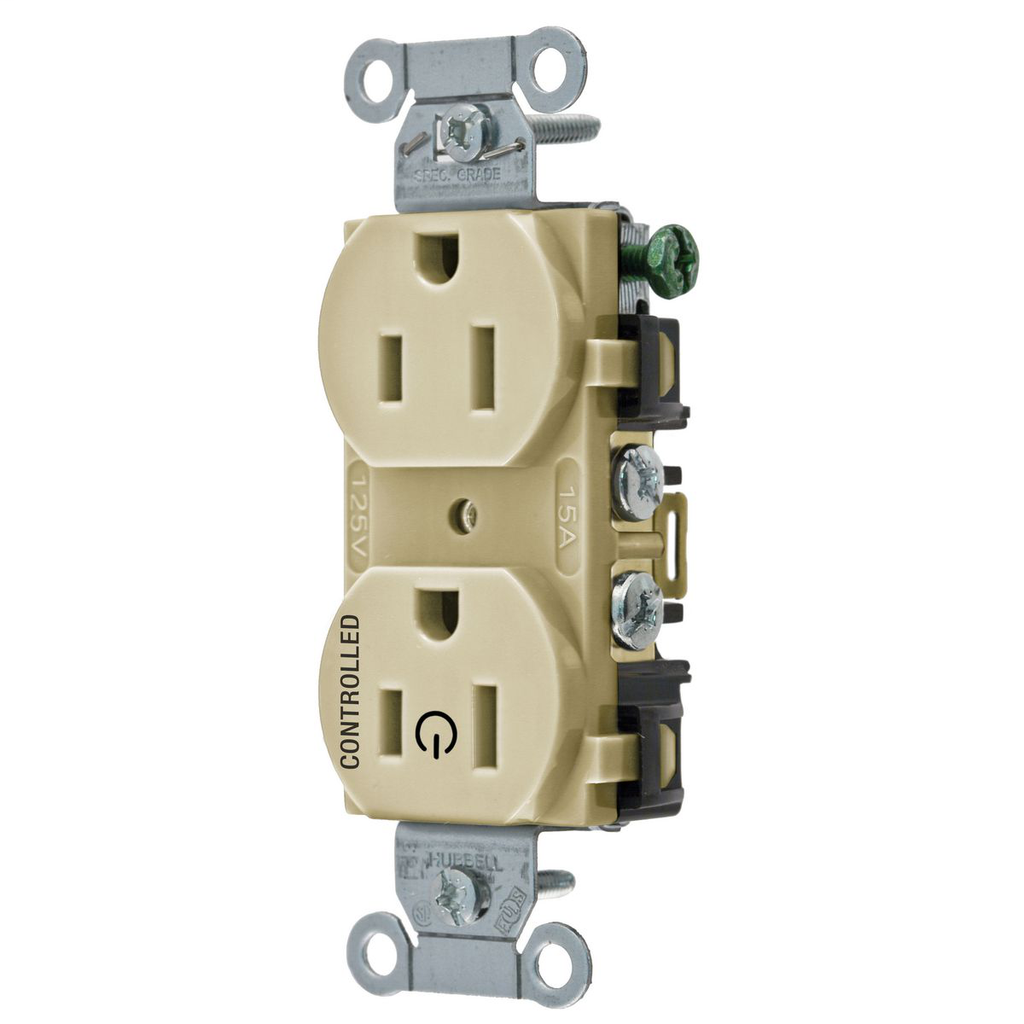

HWDK BR15C1I 1/2 CONTROLLED 15A 125
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BR15C1I
North Coast Part # 1430739

Features

  • Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
  • Half-Controlled receptacle with one face marked and the circuit tab removed
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load Logic control's or any available energy management system

Specifications

General

  • Application: Commercial Specification Grade
  • Color: Ivory
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Controlled
  • Style: Smooth Face
  • Type: One Controlled Face, Split Circuit
  • UPC: 783585551043

Dimensions

  • Dimensions: 3.28 in x 1.57 in x 1.07 in
  • Display Size: Standard Sized Product
  • Height: 1.07 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.57 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified 22.2, No. 42 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358555104
GTiN 00783585551043
Length 3.28 in
Width 1.57 in
Size 3.28 in x 1.57 in x 1.07 in
Color Ivory
Voltage 125 Volt
Type One Controlled Face, Split Circuit
Material Nylon
Product Series Controlled
Applications Commercial Specification Grade
Height 1.07 in
Weight 0.2 lb
Wire Size 14-10 AWG
Wattage 1,875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Standard 22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry unless protected by additional means
