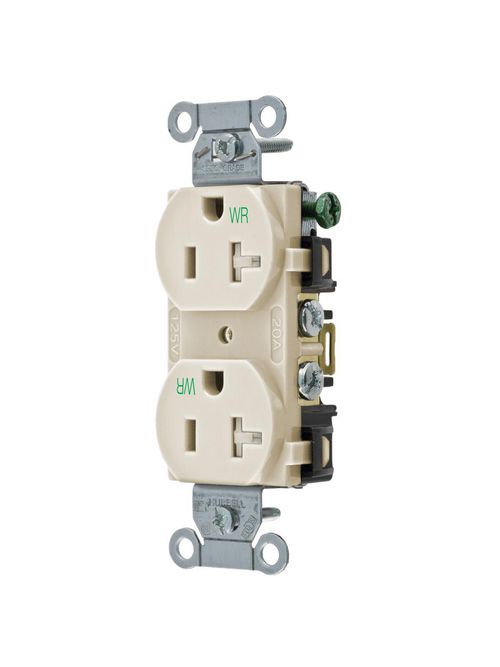

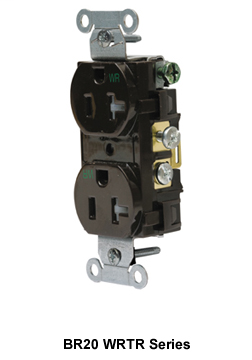

HWDK BR20ALWRTR WTR/TAMP, COM GRD,
Product image thumbnail 0
Product image thumbnail 1
$7.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BR20ALWRTR
North Coast Part # 681117

Specifications

  • Certification: UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
  • Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
  • Weight in LBs: 0.210
  • NEMA No.: 5-20R
  • Color: almond
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Poles and Wires: 2 Pole, 3-Wire Grounding
  • Power Contacts Material: .030" (.8) Brass
  • Voltage: 125V
  • Receptacle Grade: Specification Grade Commercial Series, Tamper and Weather Resistant
  • Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
  • Receptacle Style: Duplex
  • Base Material: Nylon
  • Flammability: UL 94 V2.
  • Amperage: 20A
  • Face Shape: Traditional
  • Mounting Screw Material: Steel-Zinc Plated
  • Type: 2-Pole 3-Wire, Grounding
  • Rating: 20A, 125V
  • Horsepower: 1
  • Product Identification: Ratings are a permanent part of the device.
  • Product Type: flush-receptacles
  • Wiring Method: Back and Side Wired
  • Auto Ground Clip Material: Stainless Steel
  • Standard: NEMA
  • Dielectric Voltage: Withstands 2,000V minimum.
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
  • Top Material: Nylon
  • Mounting Strap Material: .040" (1) Steel (Galvanized)
  • Other Available Colors: Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
  • Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).

Product Type

NEMA Configuration

Color

Product Drawings / Installation Instructions

Product

Instructions

Overview

UPC 78358514468
GTiN 00783585144689
Size Standard
Color Almond
Operating Temperature -40 C
Voltage 125 Volt
Type Traditional, Tamper and Weather Resistant
Material Nylon
Applications Commercial Specification Grade
Grade Specification Grade Commercial Series, Tamper And Weather Resistant
Weight 0.210 lb
Wire Size 14-12 AWG
Rating 125 V
Wattage 2500 Watt
Horsepower 1 hp
Base Material Nylon
Family Brand Name Hubbell Wiring Device Kellems
Wire Count 3
NEMA 5-20R
Certifications C22.2,Certified To CSA,Guide RTRT Fed Spec WC596G,Meets WD-1 Heavy Duty And WD-6 Requirements,No. 42 File 285.,UL Listed To UL498 File E2186
TC Connection Back and Side Wired
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Screw Material Steel, Zinc Plated
Sub Brand Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw, Recessed/Flush
Connection Type Back and Side Wired
Grounding Self
