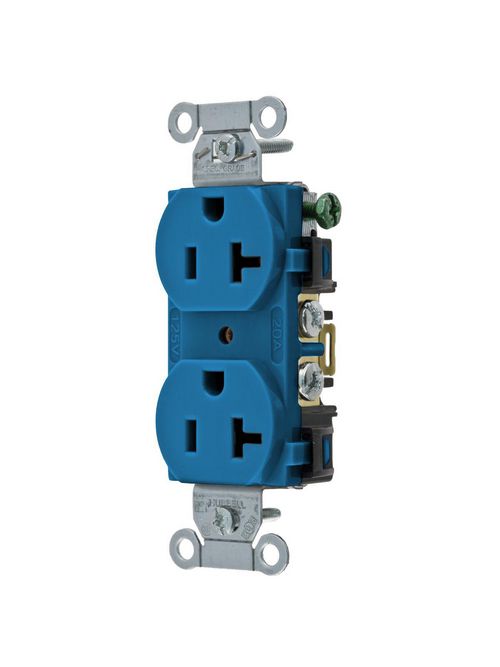

HCI BR20BL RCPT, DUP SB, COM GRD, 2
Product image thumbnail 0
Product image thumbnail 1
$2.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BR20BL
North Coast Part # 1012871

Features

  • Easy access split circuit tab
  • Nylon face and base
  • Wrap-around galvanized steel strap
  • Triple wipe contacts

Specifications

General

  • Application: Commercial Specification Grade
  • Color: Blue
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Smooth Face
  • Type: Standard Duplex
  • UPC: 783585197562

Dimensions

  • Dimensions: 1.32 in x 0.83 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.32 in
  • Weight: 0.2 lb
  • Width: 0.83 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358519756
GTiN 00783585197562
Length 1.32 in
Width 0.83 in
Size 1.32 in x 0.83 in x 3.28 in
Color Blue
Voltage 125 Volt
Type Standard Duplex
Material Nylon
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Height 3.28 in
Weight 0.2 lb
Wire Size 12-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
