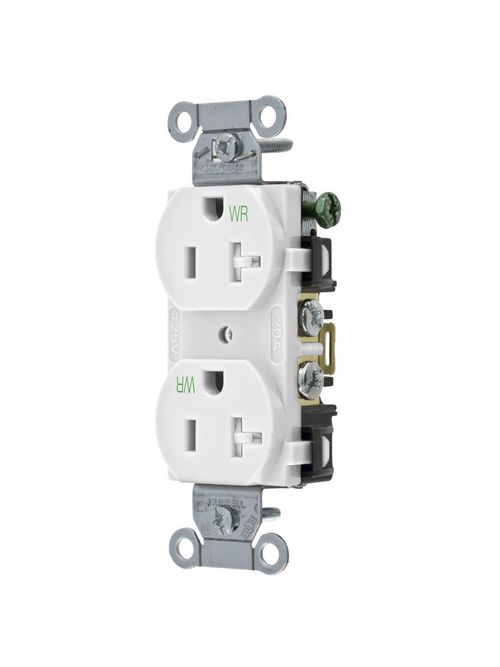

Hubbell Wiring Devices BR20WHIWRTR 125 Volt 20 Amp NEMA 5-20R White Commercial Grade Weather/Tamper Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$7.36/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BR20WHIWRTR
North Coast Part # 599638

Features

  • Weather-resistance complies with national electrical code requirements
  • Tamper-resistant shutter complies with national electrical code requirements
  • Smooth face
  • Wrap-around galvanized steel strap
  • Triple wipe contacts

Specifications

General

  • Application: Commercial Specification Grade
  • Color: White
  • Environmental Conditions: Weather Resistant
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Smooth Face
  • Type: Tamper-Resistant, Weather Resistant
  • UPC: 783585144726

Dimensions

  • Display Size: Standard Sized Product
  • Weight: 0.2 lb

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2, No. 42 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358514472
GTiN 00783585144726
Length 4.200 in
Width 1.500 in
Size Standard Sized Product
Color White
Voltage 125 Volt
Type Traditional, Tamper-Resistant
Material Nylon
Conductor Size 14-12 AWG
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Mounting Type Screw, Recessed/Flush
Height 1.000 in
Grade Commercial Specification
Weight 0.2 lb
Wire Size 12-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Self
TC Connection Back and Side Wired
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means, Weather-Resistant
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA C22.2,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
