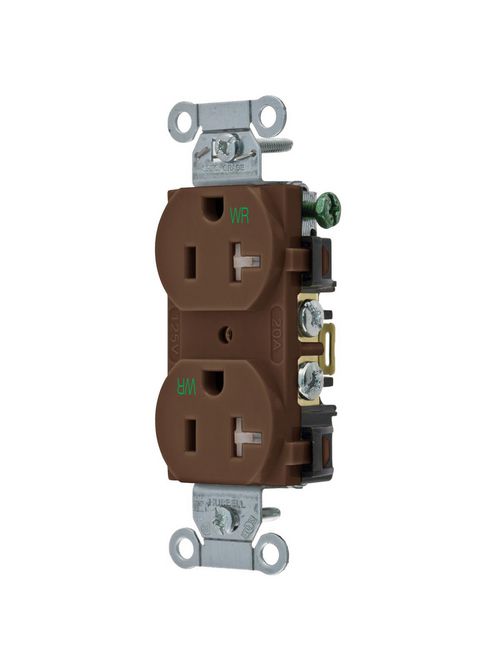

HCI BR20WRTR WTR/TAMP, COM GRD, 20A
Product image thumbnail 0
Product image thumbnail 1
$7.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # BR20WRTR
North Coast Part # 543707

Features

  • Weather-resistance complies with national electrical code requirements
  • Tamper-resistant shutter complies with national electrical code requirements
  • Smooth face
  • Wrap-around galvanized steel strap

Specifications

General

  • Application: Commercial Specification Grade
  • Color: Brown
  • Environmental Conditions: Weather Resistant
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Smooth Face
  • Type: Tamper-Resistant, Weather Resistant
  • UPC: 783585144672

Dimensions

  • Display Size: Standard Sized Product
  • Weight: 0.2 lb

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2, No. 42 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358514467
GTiN 00783585144672
Length 4.200 in
Width 1.500 in
Size Standard
Color Brown
Voltage 125 Volt
Type Traditional, Tamper and Weather Resistant
Material Nylon
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Height 1.000 in
Weight 0.2 lb
Wire Size 12-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Conductor Size 14-12 AWG
Mounting Type Screw, Recessed/Flush
Standard CSA C22.2,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Connection Type Back and Side Wired
Grounding Self
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Weather Resistant
