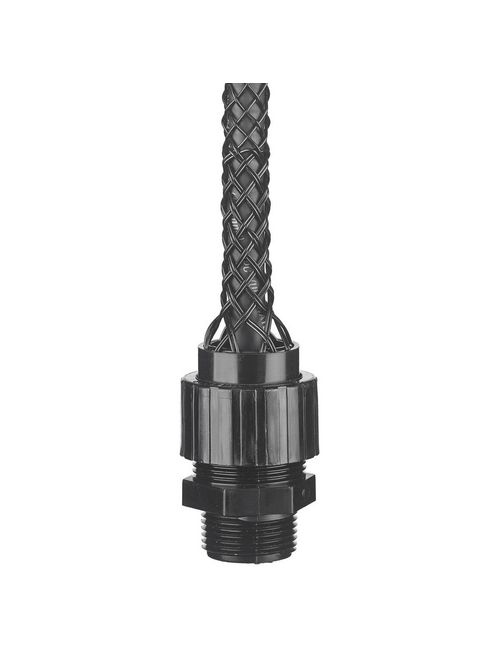

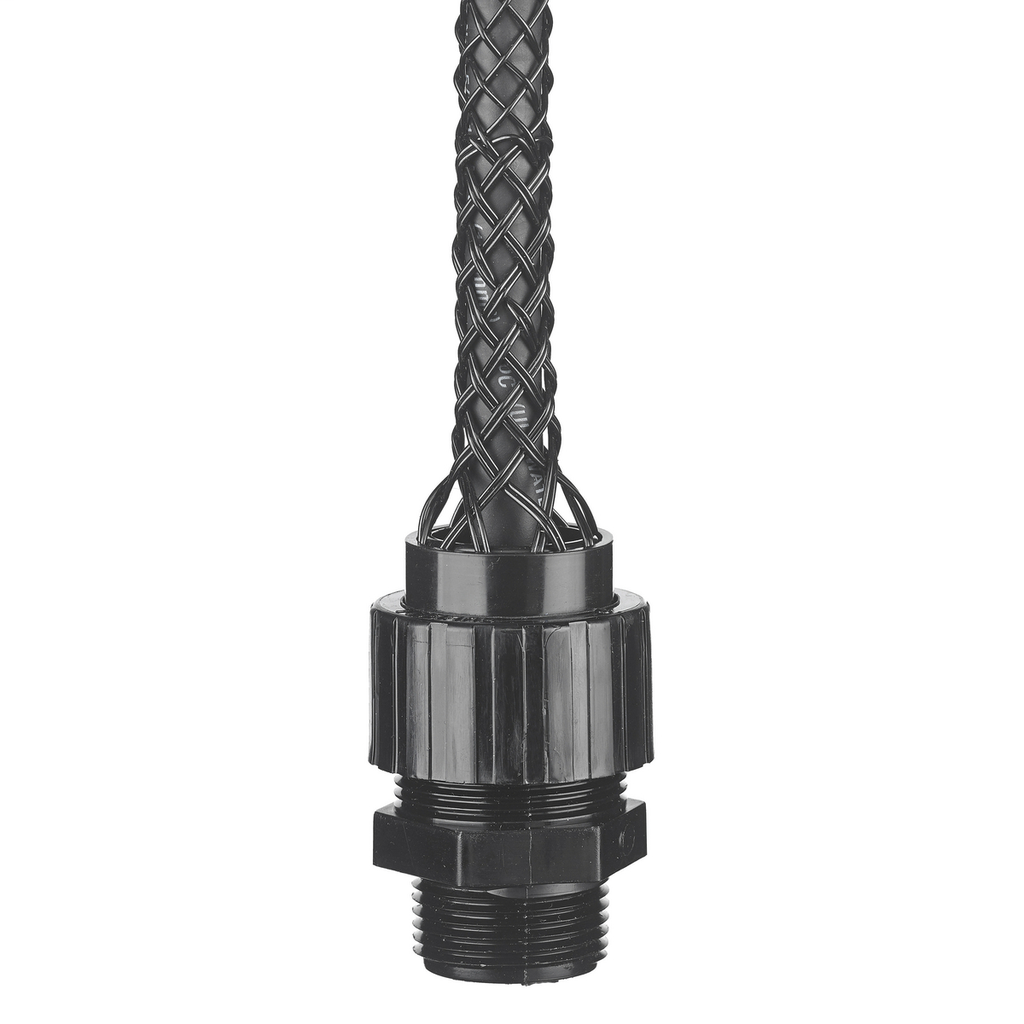

HCI CG612NM STR MALE NM DCG, .625-.
Product image thumbnail 0
Product image thumbnail 1
$90.15/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CG612NM
North Coast Part # 210968

Features

  • Nylon Fitting
  • Stainless steel mesh is corrosion resistant
  • Neoprene bushing is oil and watertight
  • Standard Product

Performance

  • Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting)
  • Environmental - Operating Temperatures - –30°F to +225°F (–34°C to +107°C)
  • Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C
  • Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting

Industry Standard(s)

  • UL Listed

Specifications

  • Application: Straight Male- Form 3
  • Cable Diameter Range: 0.625 in-0.750 in
  • Cable Size: .625"-.750" (1.59-1.90)
  • Carton Quantity: 5 EA
  • Conductor Range: 0.625-0.75 in (1.59-1.90 mm)
  • Display Size: 3/4" NPT
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Item Type: Deluxe Cord Grips
  • Material: Nylon Fittings, Non-Metallic Mesh
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • Minimum Order Quantity: 1 EA
  • Number Of Conductors: Single
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • SAP Material Group 5: A30
  • Series: Deluxe Cord Grips
  • Style: For Insulated Cables
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Thread Size: 3/4" NPT
  • Type: Straight Male Thread
  • EU RoHS Indicator: Yes
  • Each - Length: 11.000 in
  • Each - Height: 1.300 in
  • Each - Width: 1.300 in
  • Special Features: Standard Product
  • Standard: UL Listed

Overview

UPC 78358533507
GTiN 00783585335070
Length 11.000 in
Width 1.300 in
Size 3/4" NPT
Color Black
Type Straight, Male, Form 3, Standard, Deluxe
Material Nylon
Number of Conductors 1
Product Series Deluxe Cord Grips
Applications Straight Male- Form 3
Height 1.300 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Sub Brand Kellems Wire Management
Cable Type Jacketed UL Listed Cable
Cable Size 0.625 - 0.75 in
TC Connection 3/4 in NPT
