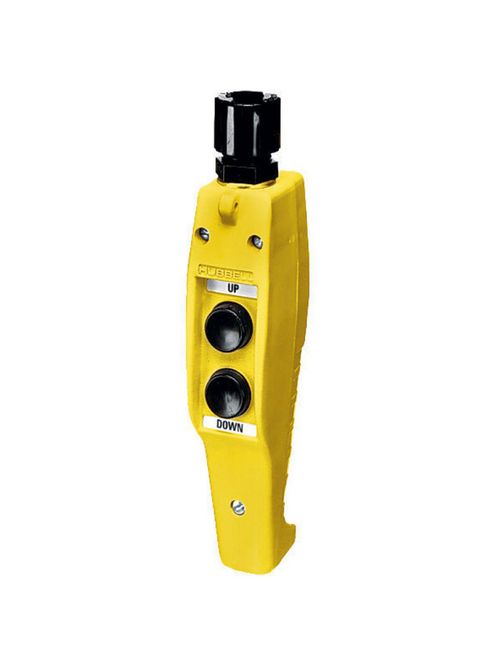

Hubbell Wiring Devices CPB21 2-Button 1-Speed NEMA 4X Compact Pendant Push Button Station
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$135.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CPB21
North Coast Part # 216467

Features

  • Single-speed with mechanical interlock between pushbuttons.

Specifications

General

  • Actuator: Push Buttons
  • Contact Configuration: Momentary
  • Enclosure Type: NEMA 4X
  • Environmental Conditions: Indoor and Outdoor
  • Indicator(s) Type: None
  • Ingress Protection: IP55
  • Material - Mounting Hardware: Cable Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Environmental -  Operating Temperatures - Max Continuous- 75 ° C, Minimum -40° w/o Impact
  • Series: Compact
  • Style: Two Button
  • Type: Single Speed
  • UPC: 783585106854

Dimensions

  • Dimensions: 9.13 in x 1.06 in x 2.38 in
  • Display Size: Compact
  • Height: 2.38 in
  • Length: 9.13 in
  • Weight: 0.75 lb
  • Width: 1.06 in

Electrical Ratings

  • Amperage Rating: 120V AC- 6A, 240V AC 35% PF- 3A, 125V DC- 1.1A, Inductive 250V- .55 A
  • Connectivity: Terminal Screws
  • Contact Rating: Pilot Duty Only
  • Phase: Single Phase

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA 4X

Logistics

  • Carton Quantity: 25

Overview

UPC 78358510685
GTiN 00783585106854
Length 9.13 in
Width 1.06 in
Size Compact
Color Yellow
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Complete Unit- 2 Buttons
Material Non-Metallic
Product Series Compact
Number of Holes 2 Hole
Applications Single Speed
Mounting Type Cable
Height 2.38 in
Weight 0.75 lb
Temperature Rating 75 C Maximum Continuous, -40 C Minimum Continuous without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Terminal Screws
Actuator Push Buttons
Contact Configuration Momentary
Blade Dimensions 60.5 mm D x 231.9 m H
Environmental Conditions Indoor or Outdoor
Contact Rating Pilot Duty Only
Number of Poles 2 Pole
Enclosure Integral
Indicator None
Action Momentary
Sub Brand Magnetic Starter Controls
Standard UL
Voltage 250 Volt
