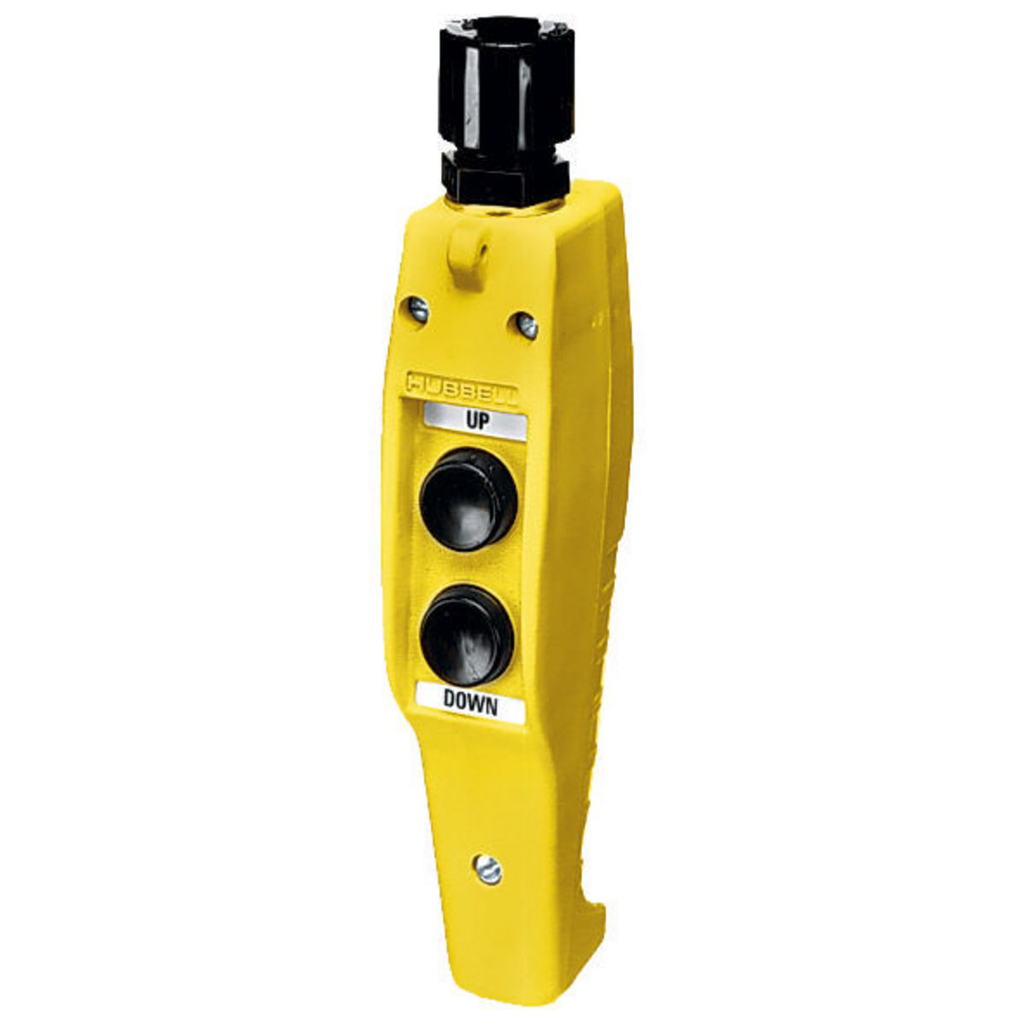

Hubbell Wiring Devices CPB22 2-Button 2-Speed NEMA 4X Compact Pendant Push Button Station
Product image thumbnail 0
Product image thumbnail 1
$159.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CPB22
North Coast Part # 216482

Features

  • Two-speed with mechanical interlock between pushbuttons.

Specifications

General

  • Actuator: Push Buttons
  • Contact Configuration: Momentary
  • Enclosure Type: NEMA 4X
  • Environmental Conditions: Indoor and Outdoor
  • Indicator(s) Type: None
  • Ingress Protection: IP55
  • Material - Mounting Hardware: Cable Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Environmental -  Operating Temperatures - Max Continuous- 75 ° C, Minimum -40° w/o Impact
  • Series: Compact
  • Style: Two Button
  • Type: Two Speed
  • UPC: 783585106908

Dimensions

  • Display Size: Compact
  • Weight: 0.75 lb

Electrical Ratings

  • Amperage Rating: 120V AC- 3A, 240V AC 35% PF- 1.5 A
  • Connectivity: Terminal Screws
  • Contact Rating: Pilot Duty Only
  • Phase: Single Phase

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA 4X

Logistics

  • Carton Quantity: 25

Overview

UPC 78358510690
GTiN 00783585106908
Length 7.178 in
Width 1.798 in
Size Compact
Color Yellow
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Complete Unit- 2 Buttons
Material Non-Metallic
Product Series Compact
Applications Two Speed
Height 14.000 in
Weight 0.75 lb
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Terminal Screws
Actuator Push Buttons
Contact Configuration Momentary
Contact Rating Pilot Duty Only
Number of Poles 4 Pole
Enclosure Integral
Indicator None
Sub Brand Magnetic Starter Controls
Standard UL
Voltage null
