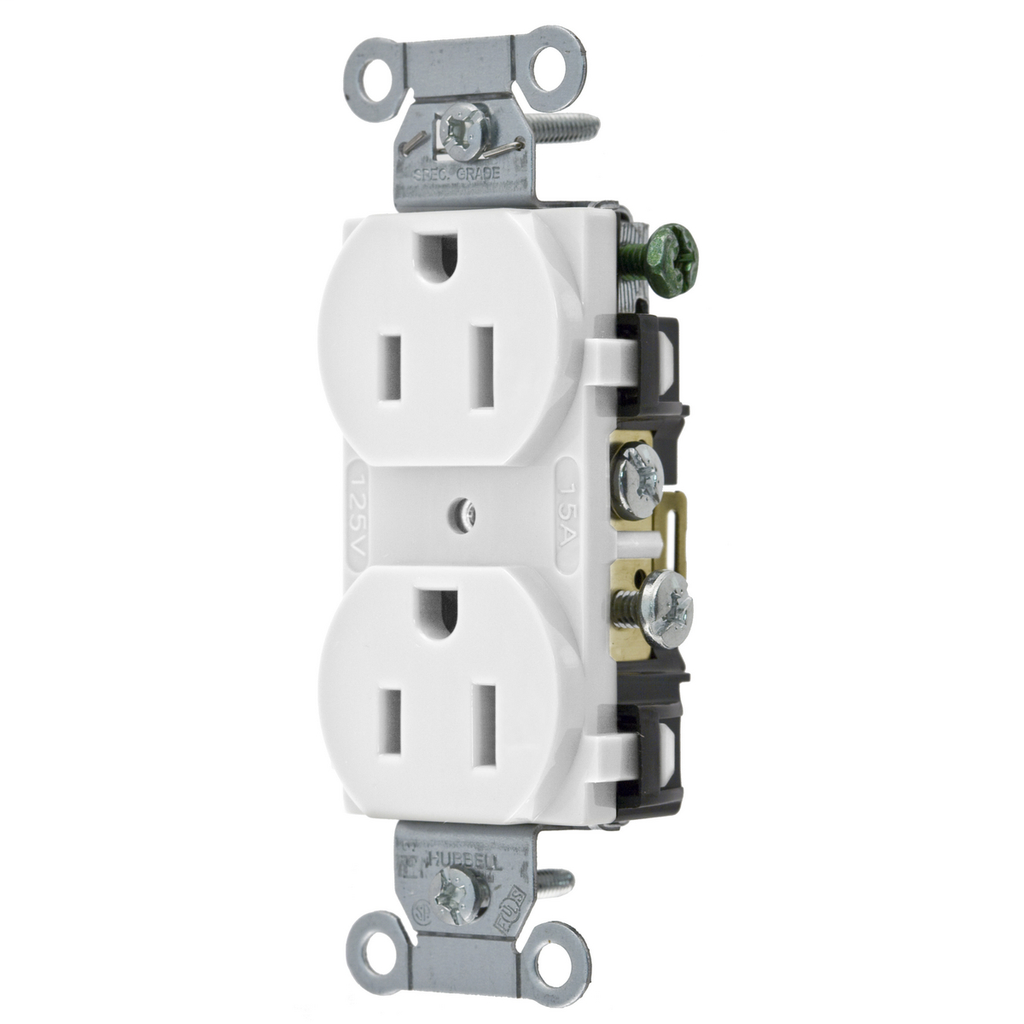

Hubbell Wiring Devices CR15WHI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Straight Blade Duplex Receptacle
$1.78/ea
In Stock | 373 available at 9 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CR15WHI
North Coast Part # 161275

Features

  • Easy access split circuit tab
  • Fork terminal capable
  • Smooth face
  • Triple wipe contacts

Specifications

General

  • Application: Commercial Specification Grade
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Smooth Face
  • Type: Standard Duplex
  • UPC: 783585900070

Dimensions

  • Dimensions: 1.32 in x 0.83 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.32 in
  • Weight: 0.15 lb
  • Width: 0.83 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10
> View Substitutes (1)

Overview

UPC 78358590007
GTiN 00783585900070
Length 1.32 in
Finish Matte
Width 0.83 in
Size Standard
Color White
Voltage 125 Volt
Type Standard Duplex
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Mounting Type Screw, Flush
Height 3.28 in
Grade Commercial/Specification
Weight 0.15 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 15 A
Blade Dimensions 33.6 mm W x 21.1 mm D x 69.3 mm H
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
