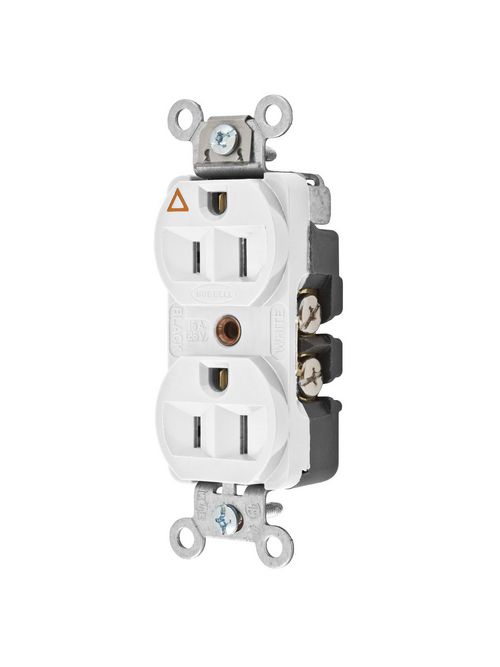

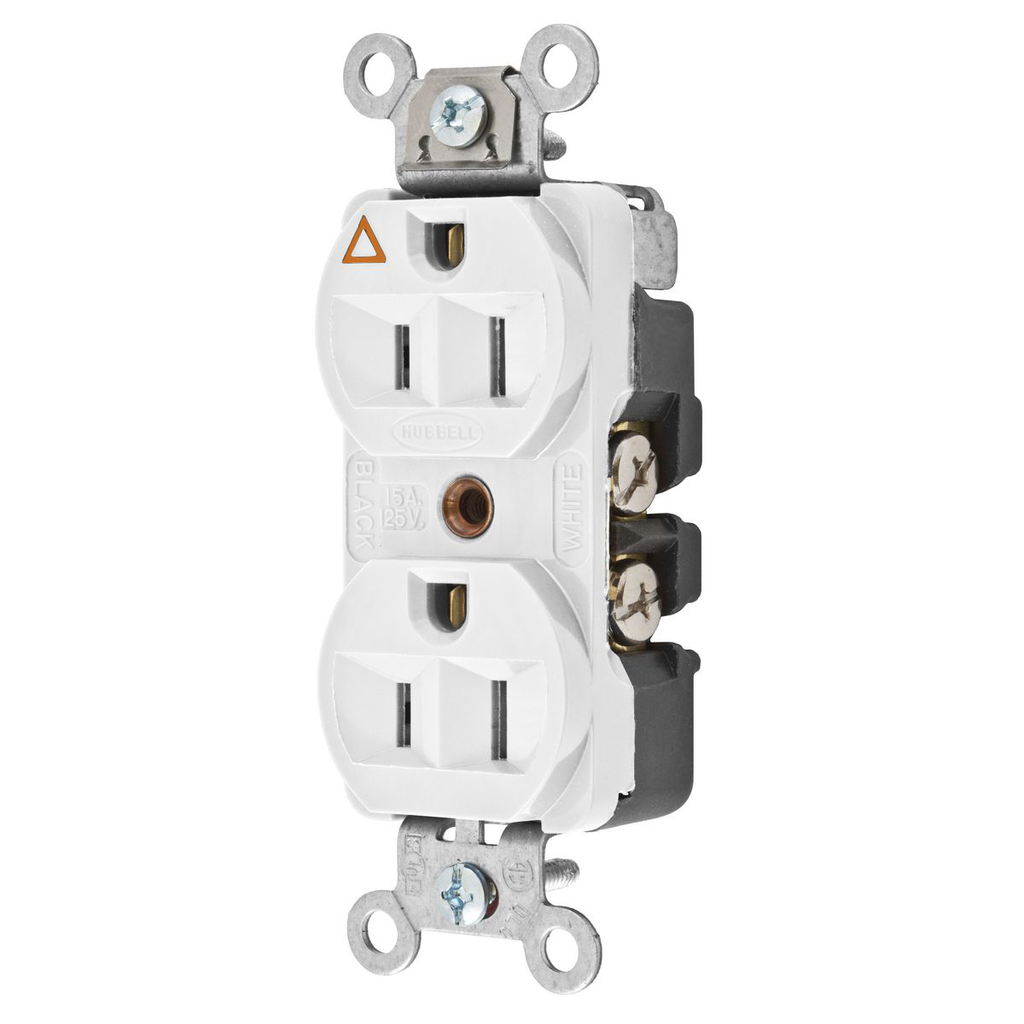

HCI CR5252IGW DUP IG, RCPT, CONST G
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CR5252IGW
North Coast Part # 210014

Features

  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face
  • Isolated Ground

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.33 in x 1.05 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.05 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Amperage Rating: 15 A
  • Application: Hubbell-Pro Heavy Duty
  • Color: White
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.33 in x 1.05 in
  • Special Features: Isolated Ground
  • Standard: Certified to CSA, C22.2, No. 42 File 285Fed. Spec. WC596NEMA® WD-6 CompliantUL Listed to UL498 File No. E2186
  • Type: Isolated Ground
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.33 in
  • Nema Rating: 5-15R
  • Number Of Wires: 3-Wire
  • Connectivity: Back and Side Wired Screw Terminals
  • Current Rating: 15 A
  • Display Size: Standard Sized Product
  • Weight: 0.22 lb
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Hubbell-PRO
  • Style: Finder Groove Face

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585387062
Length 3.28 Inch
Width 1.33 in
Size 3.28 in x 1.33 in x 1.05 in
Color White
Voltage 125 Volt
Type Traditional
Material Nylon
Conductor Size 14-12 AWG
Product Series PRO,Hubbell
Applications Hubbell-Pro Heavy Duty
Mounting Type Screw
Height 1.05 Inch
Grade Commercial
Weight 0.22 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Isolated
TC Connection Back and Side Wired Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Product UPC 78358538706
Standard C22.2,CSA,Fed. Spec. WC596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Country of Origin USA
