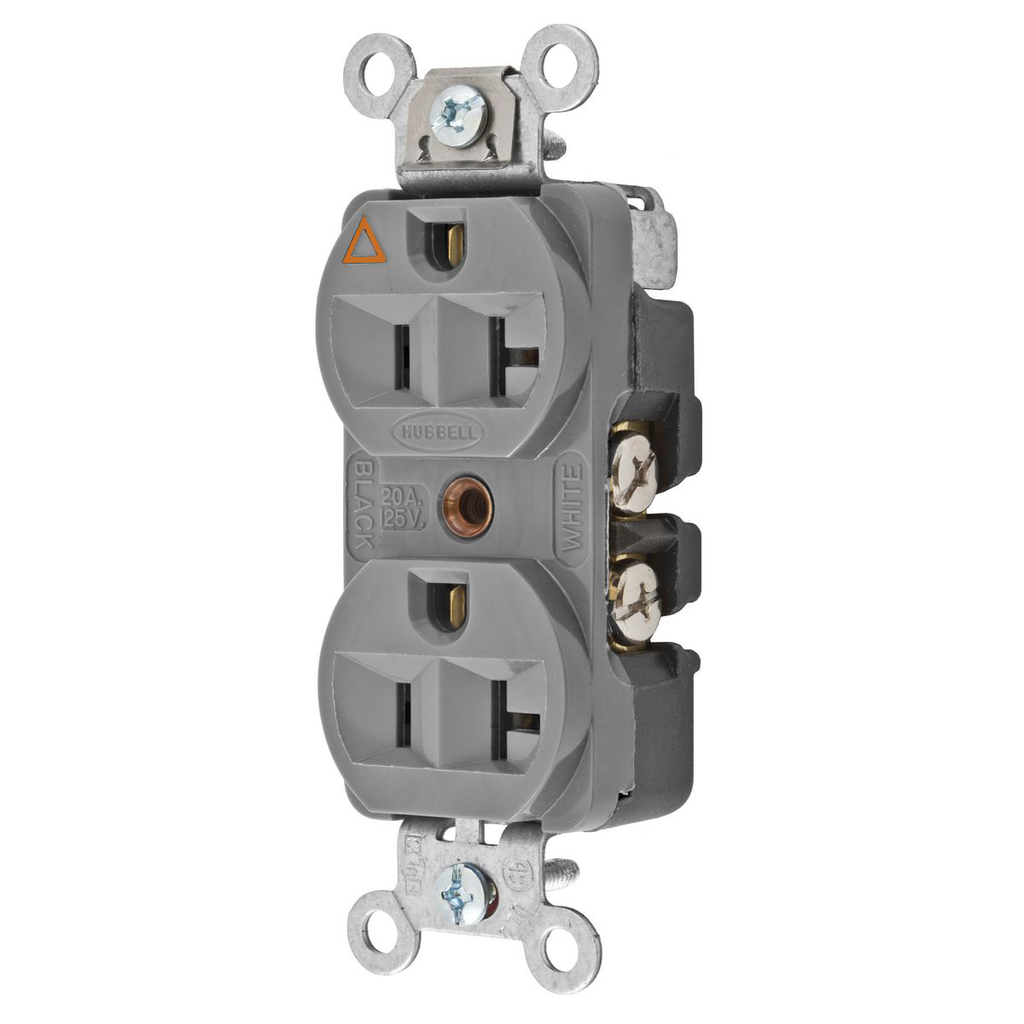

HCI CR5352IGGY DUP RCPT, IG, CONST
$25.72/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CR5352IGGY
North Coast Part # 152735

Features

  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face

Specifications

General

  • Application: Hubbell-Pro Heavy Duty
  • Color: Gray
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hubbell-PRO
  • Style: Finder Groove Face
  • Type: Isolated Ground
  • UPC: 783585387192

Dimensions

  • Dimensions: 3.28 in x 1.33 in x 1.05 in
  • Display Size: Standard Sized Product
  • Height: 1.05 in
  • Length: 3.28 in
  • Weight: 0.22 lb
  • Width: 1.33 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. WC596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358538719
GTiN 00783585387192
Length 3.28 in
Width 1.33 in
Size Standard
Color Gray
Voltage 125 Volt
Type Traditional
Material Thermoplastic
Product Series Hubbell,PRO
Applications Commercial Grade
Height 1.05 in
Weight 0.22 lb
Wire Size 14-12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw
Standard Fed. Spec. WC596,NEMA WD-6,No. 42 File 285,C22.2,CSA,UL498 File No. E2186,UL
Connection Type Back and Side Wired
Grounding Isolated Ground
