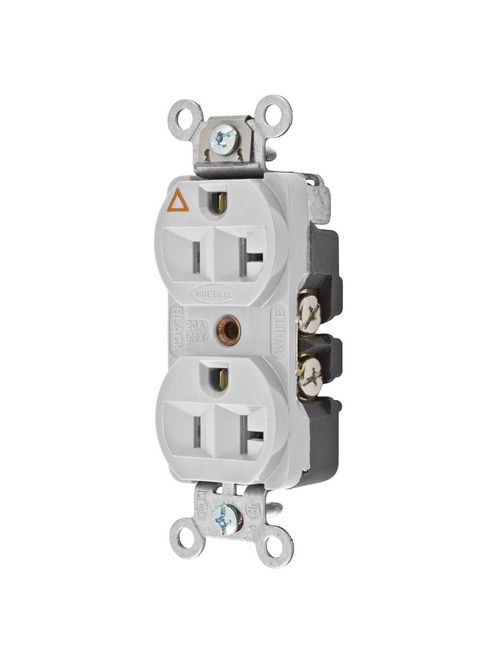

HWDK CR5352IGOW DUP RCPT, IG, CONST

Features

• Triangle marking on face indicates isolated ground
• Slender/compact design
• Finder Groove Face

Specifications

General

• Application: Hubbell-Pro Heavy Duty
• Color: Office White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Series: Hubbell-PRO
• Style: Finder Groove Face
• Type: Isolated Ground
• UPC: 783585387239

Dimensions

• Dimensions: 3.28 in x 1.33 in x 1.05 in
• Display Size: Standard Sized Product
• Height: 1.05 in
• Length: 3.28 in
• Weight: 0.22 lb
• Width: 1.33 in

Electrical Ratings

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

• Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. WC596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
• Nema Rating: 5-20R

Logistics

• Carton Quantity: 10
