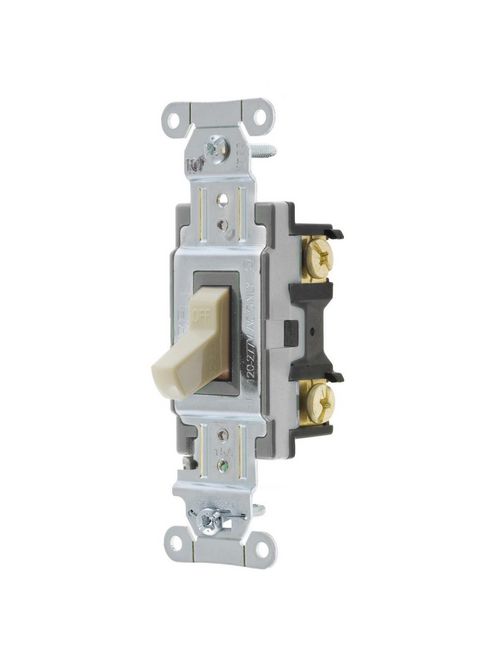

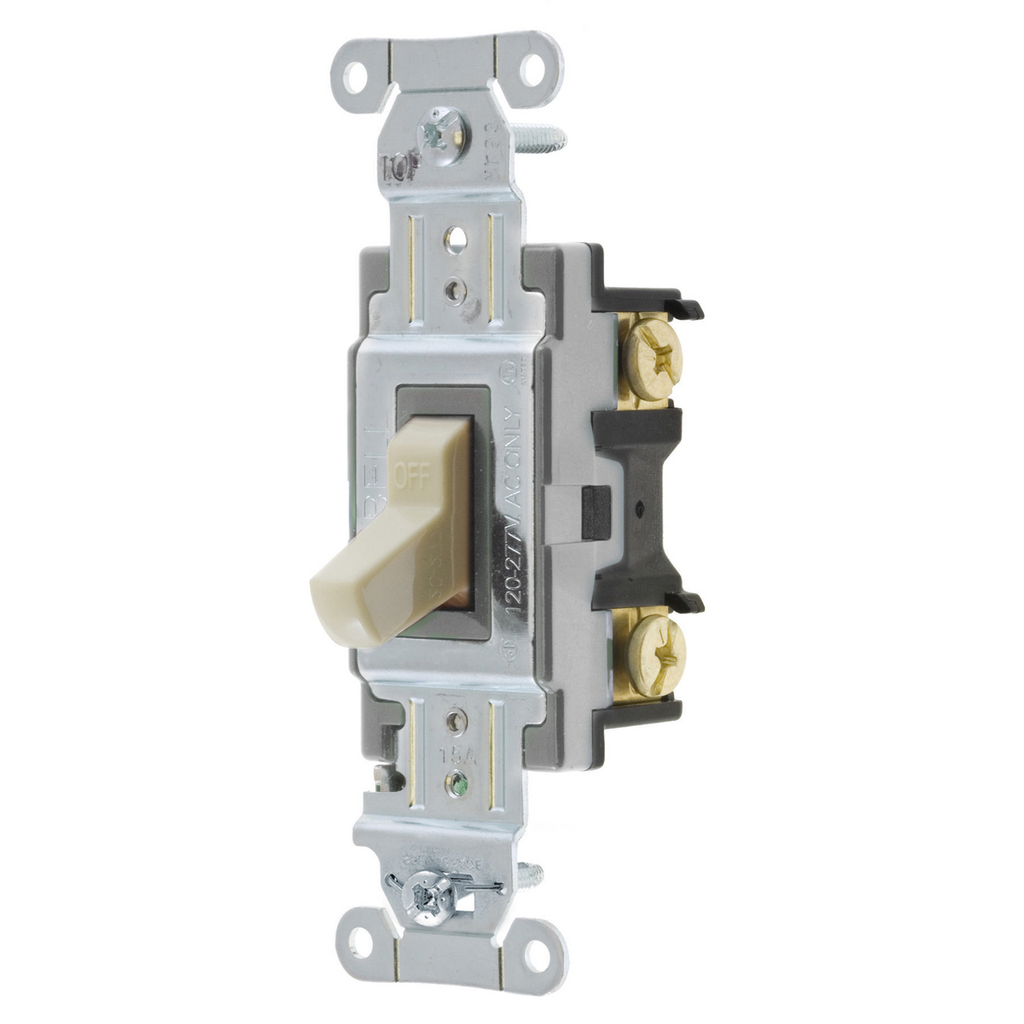

Hubbell Wiring Devices CS115I 15 Amp 120/277 VAC 1-Pole Ivory Toggle Switch
$2.60/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CS115I
North Coast Part # 68452

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant

Specifications

General

  • Color: Ivory
  • Item Type: Single Pole Toggle Switch
  • Material: Nylon
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 15A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: General Purpose
  • Style: Single Pole
  • Type: Toggle
  • UPC: 783585901053

Dimensions

  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Height: 1.83 in
  • Length: 4.18 in
  • Weight: 0.15 lb
  • Width: 1.49 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Side Wired Only
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358590105
GTiN 00783585901053
Length 4.18 in
Width 1.49 in
Size Standard Sized
Color Ivory
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type General Purpose, 2 Position, Standard
Material Nylon
Product Series General Purpose
Applications Commercial Spec Grade
Height 1.83 in
Grade Commercial
Weight 0.15 lb
Wattage 4.155 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Side Wired Only
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Blade Dimensions 31.8 mm W x 28.7 mm D x 60.5 mm H
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap, Off
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
