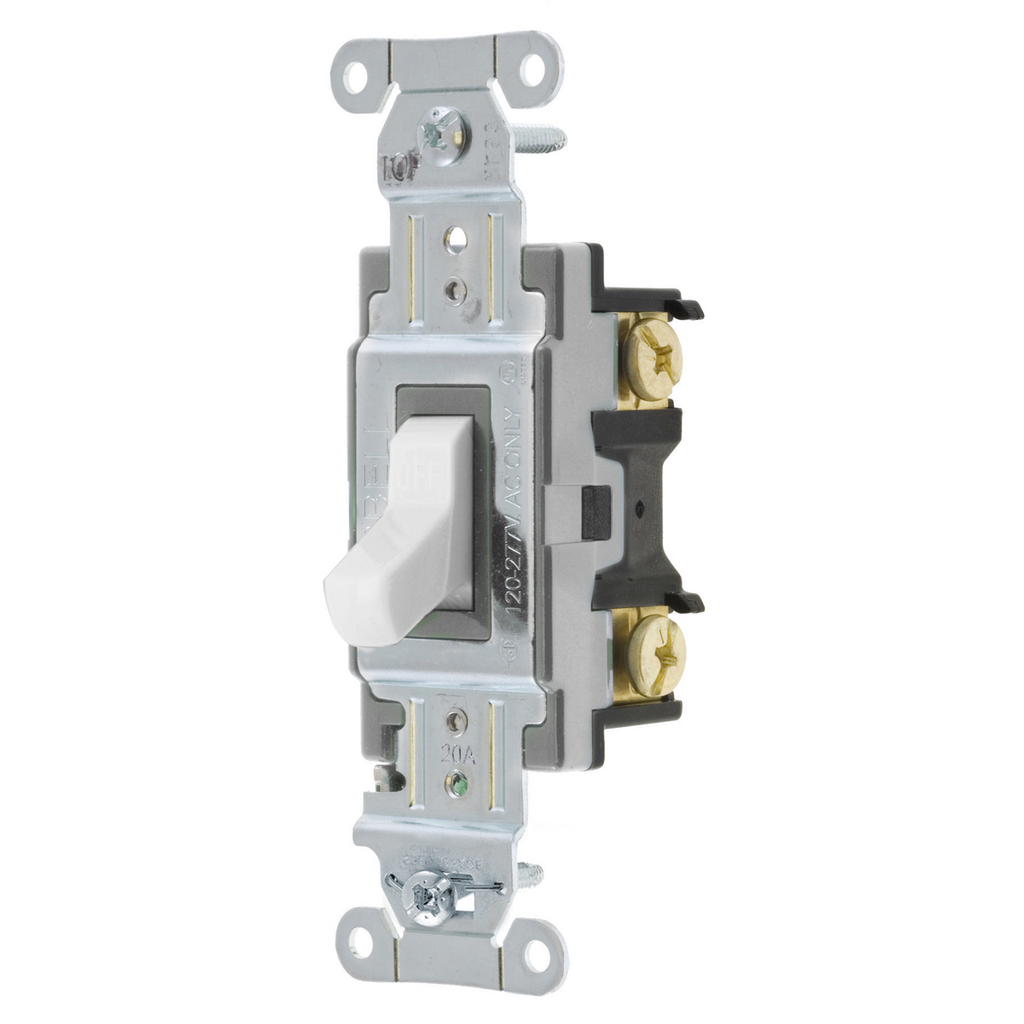

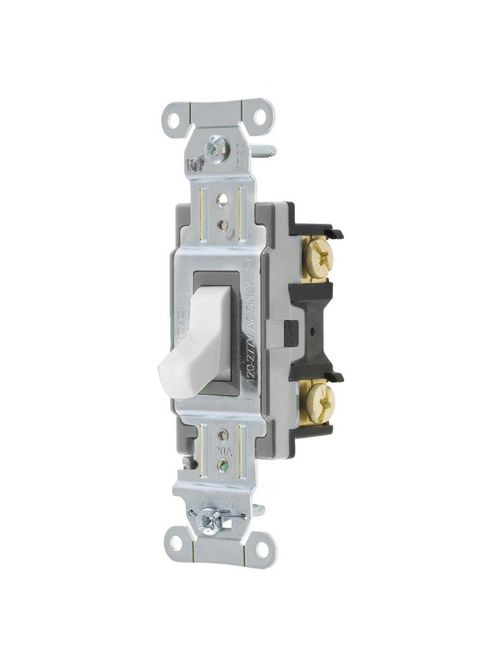

Hubbell Wiring Devices CS120W 20 Amp 120/277 VAC 1-Pole White Toggle Switch
$2.87/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CS120W
North Coast Part # 68987

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant

Specifications

General

  • Color: White
  • Item Type: Single Pole Toggle Switch
  • Material: Nylon
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: General Purpose
  • Style: Single Pole
  • Type: Toggle
  • UPC: 783585901145

Dimensions

  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Height: 1.83 in
  • Length: 4.18 in
  • Weight: 0.15 lb
  • Width: 1.49 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Side Wired Only
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358590114
GTiN 00783585901145
Length 4.18 in
Width 1.49 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type General Purpose, 2 Position, Standard
Material Nylon
Product Series General Purpose
Applications Commercial Spec Grade
Height 1.83 in
Grade Commercial
Weight 0.15 lb
Wattage 5,540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Side Wired Only
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap, Off
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
