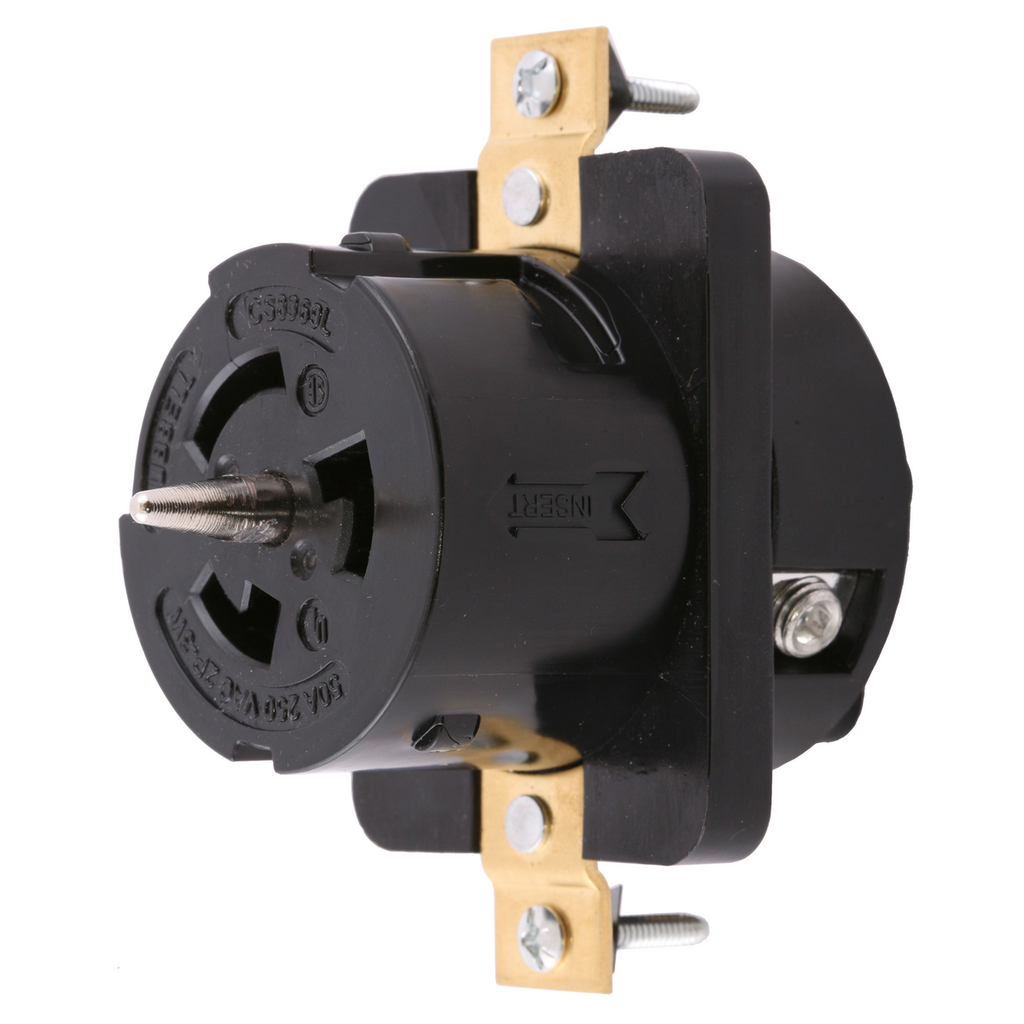

HCI CS8369L LKG RCPT, 50A 3P250V, 3
$137.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CS8369L
North Coast Part # 600651

Features

Standard Product

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 50A Single Armored Heavy Duty Receptacle
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • Style: Heavy Duty
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Receptacle
  • UPC: 783585320755

Dimensions

  • Display Size: Standard
  • Height: 2.40 in
  • Length: 3.30 in
  • Width: 2.10 in

Electrical Ratings

  • Amperage Rating: 50 A
  • Connectivity: Screw Terminals
  • Current Rating: 50 A
  • Voltage Rating: 3 Phase 250 VAC
  • Voltage Rating Description: 3 Phase 250V AC

Conductor Related

  • Conductor Range: #6 AWG
  • Number Of Conductors: 4-Wire Grounding
  • Number Of Wires: 4-Wire
  • Wire Size: #14 AWG to #10 AWG

Logistics

  • Carton Quantity: 30 EA

Related Products

  • 7382
  • 7774CR
  • CS8365L
  • 7383
  • SS750
  • 7770

Overview

UPC 78358532075
GTiN 00783585320755
Length 3.30 in
Width 2.10 in
Size Standard
Color Black
Voltage 250 Volt
Type Standard
Material Nylon
Number of Conductors 4-Wire Grounding
Applications Heavy Duty Industrial, 50 A Twist-Lock
Height 2.40 in
Style Heavy Duty
Wire Size 14-10 AWG
Temperature Rating -25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Amperage 50 Amp
Current 50 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand 50A Twist-Lock
Conductor Size 6 AWG
Mounting Type Cord
