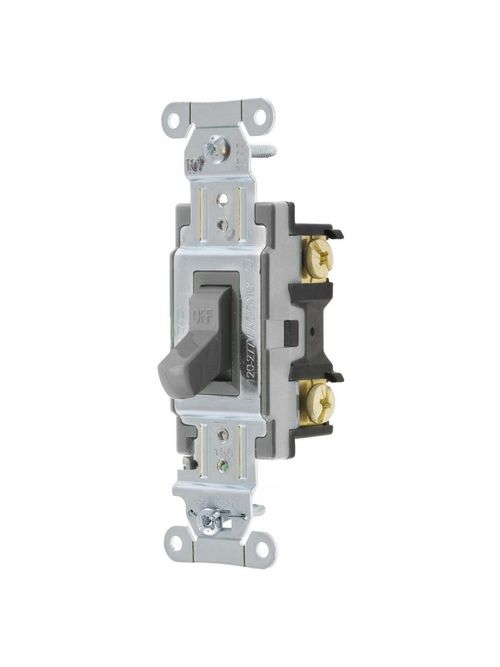

HWDK CSB115GY SWITCH, SPEC, SP, 15A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$3.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CSB115GY
North Coast Part # 485369

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.83 in
  • Industry Standard(s): UL Listed
  • Length: 4.18 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 15 A
  • Color: Gray
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.18 in x 1.49 in x 1.83 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Width: 1.49 in

Certifications

  • EU RoHS Indicator: Yes

Categories

Overview

GTiN 00783585153773
Length 4.16 Inch
Width 1.49 in
Size 4.18 in x 1.49 in x 1.83 in
Color Gray
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Standard, 2-Position
Material Nylon
Product Series General Purpose
Applications Commercial Spec Grade
Height 1.66 Inch
Weight 0.15 lb
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Product UPC 78358515377
Grade Commercial Specification
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
Country of Origin China
