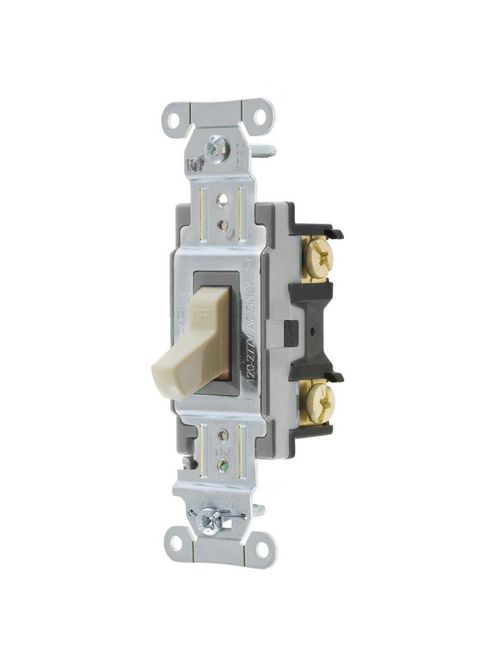

Hubbell Wiring Devices CSB115I 15 Amp 120/277 VAC 1-Pole Ivory Toggle Switch

$3.58/ea

In Stock | 114 available at 7 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Color: Ivory
Item Type: Single Pole Commercial Toggle Switch
Material: Nylon
Number Of Poles: Single Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 15A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series: General Purpose
Style: Single Pole
Type: Toggle
UPC: 783585153766

UPC	78358515376
GTiN	00783585153766
Length	4.18 in
Width	1.49 in
Size	4.18 in x 1.49 in x 1.83 in
Color	Ivory
Operating Temperature	Maximum continuous 75C and minimum -40C without Impact
Voltage	120-277 Volt
Type	General Purpose, 2-Position, Standard
Material	Nylon
Product Series	General Purpose
Applications	Commercial Spec Grade
Height	1.83 in
Grade	Commercial
Weight	0.15 lb
Wattage	4155 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	15 A
Contact Rating	Per UL 20
Number of Poles	1 Pole
Enclosure	None
Action	Positive Snap, Off
Operating Cycles	50000
Sub Brand	AC Toggle Switches
Standard	UL
Environmental Conditions	Indoor Dry unless protected by additional means
