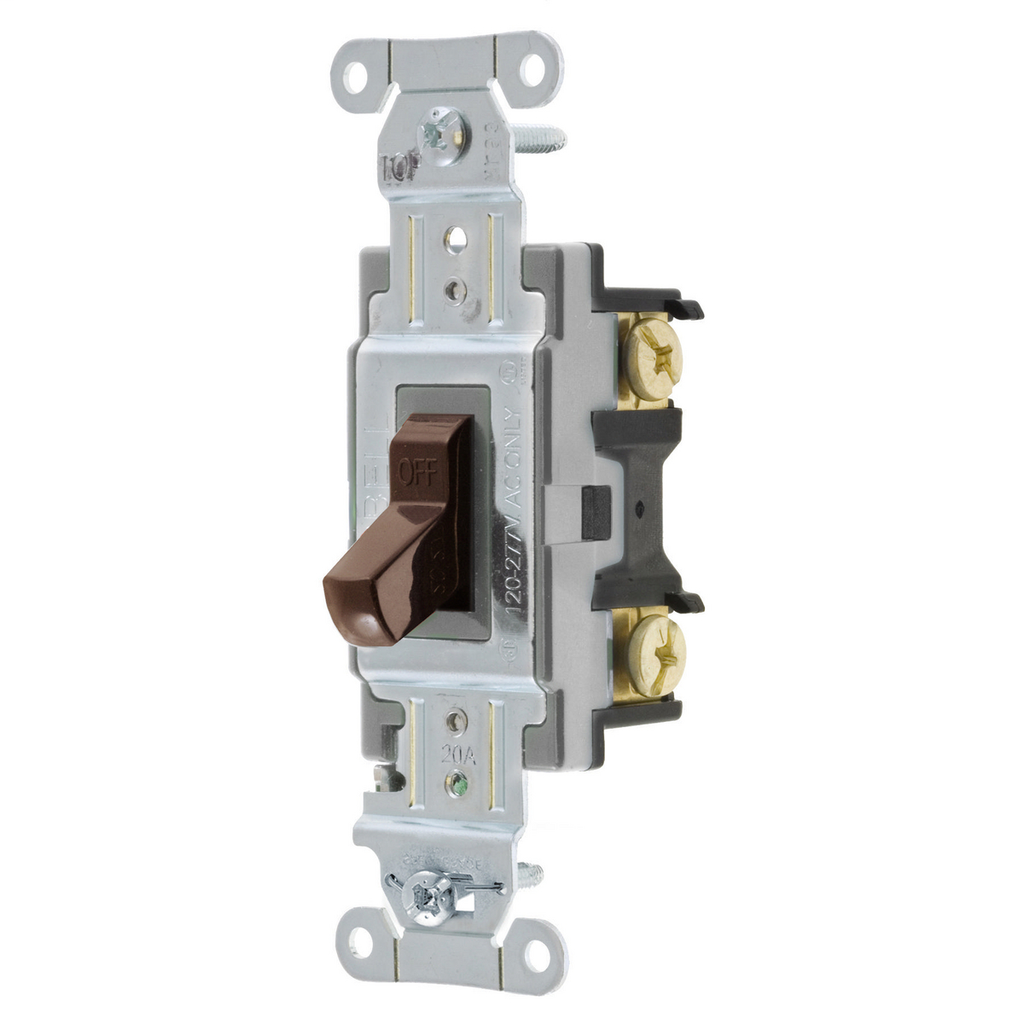

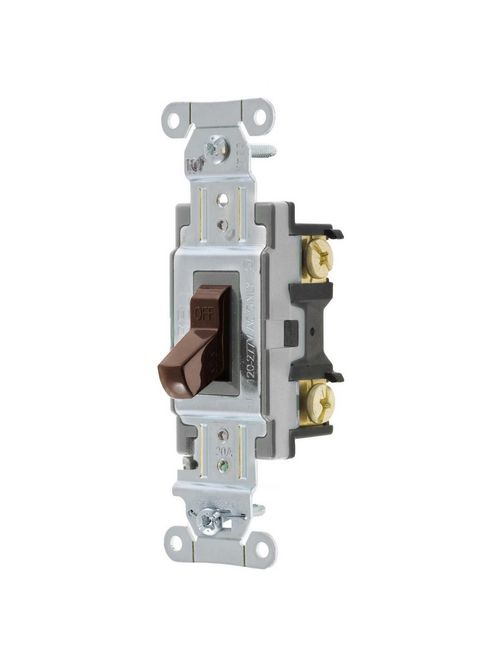

HWDK CSB120 SWITCH, SPEC, SP, 20A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CSB120
North Coast Part # 485399

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.83 in
  • Industry Standard(s): UL Listed
  • Length: 4.18 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 20 A
  • Color: Brown
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.18 in x 1.49 in x 1.83 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Width: 1.49 in
  • Wire Size: #14 AWG to #10 AWG
  • Connectivity: Back and Side Wired
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Weight: 0.15 lb
  • Item Type: Single Pole Commercial Toggle Switch
  • Material: Nylon
  • Number Of Poles: Single Pole
  • Series: General Purpose
  • Style: Single Pole

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585154039
Length 4.16 Inch
Width 1.49 in
Size 4.18 in x 1.49 in x 1.83 in
Color Brown
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 2-Position, Standard
Material Nylon
Product Series General Purpose
Applications Commercial Spec Grade
Height 1.66 Inch
Grade Commercial
Weight 0.15 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap, Off
Operating Cycles 50000
Sub Brand AC Toggle Switches
Product UPC 78358515403
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Country of Origin China
Wire Size 14-10 AWG
