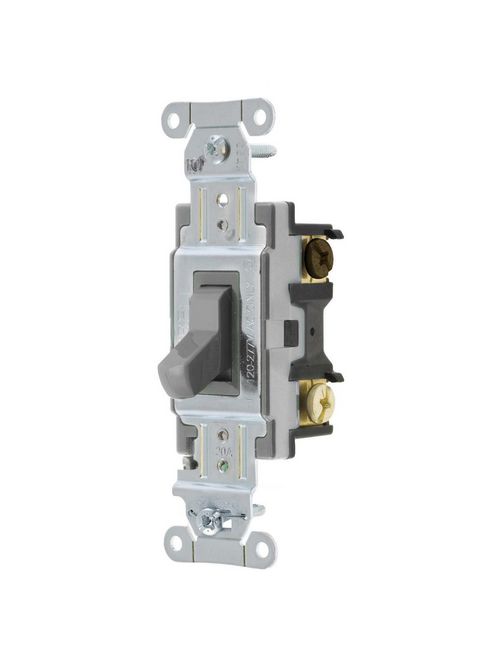

Hubbell Wiring Devices CSB320GY 20 Amp 120/277 VAC 3-Way Gray Toggle Switch

$6.36/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Country of Origin: CN
Current / Amperage Rating: 20 A
Dimensions: 4.18 in x 1.49 in x 1.83 in
Each - Height: 1.660 in
Each - Length: 4.160 in
Each - Width: 1.910 in
Height: 1.83 in
Industry Standard(s): UL Listed
Length: 4.18 in
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Show Add To ProjectList: Yes
Temperature Rise - Max.: 30°C maximum at rated current
Action: SPDT
Amperage Rating: 20 A
Color: Gray
Number of Poles: Single Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Size: 4.18 in x 1.49 in x 1.83 in
Standard: UL Listed
Type: Toggle
Voltage Rating: 120-277 VAC
Width: 1.49 in

UPC	78358515423
Item Long Description	Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Gray
GTiN	00783585154237
Length	4.18 in
Width	1.49 in
Size	4.18 in x 1.49 in x 1.83 in
Color	Gray
Operating Temperature	Maximum continuous 75C and minimum -40C without Impact
Voltage	120-277 Volt
Type	General Purpose, 2-Position, Standard
Material	Nylon
Product Series	General Purpose
Applications	Commercial Spec Grade
Height	1.83 in
Grade	Commercial
Weight	0.15 lb
Wattage	5540 Watt
Family Brand Name	Hubbell Wiring Device Kellems
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	20 A
Contact Rating	Per UL 20
Number of Poles	1 Pole
Enclosure	None
Action	Off
Operating Cycles	50000
Sub Brand	AC Toggle Switches
Standard	UL
Environmental Conditions	Indoor Dry unless protected by additional means
