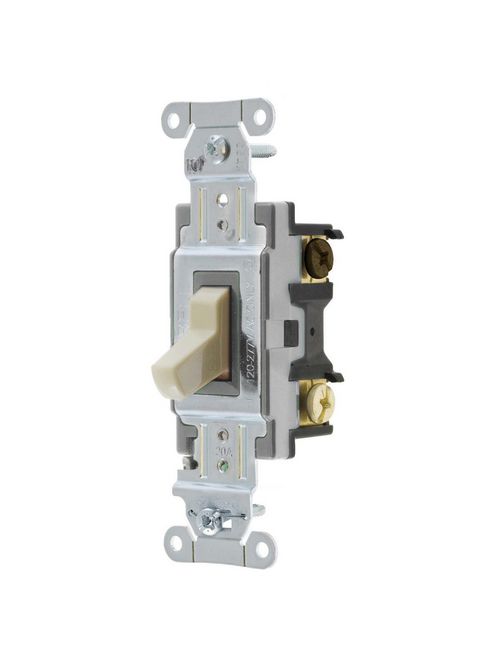

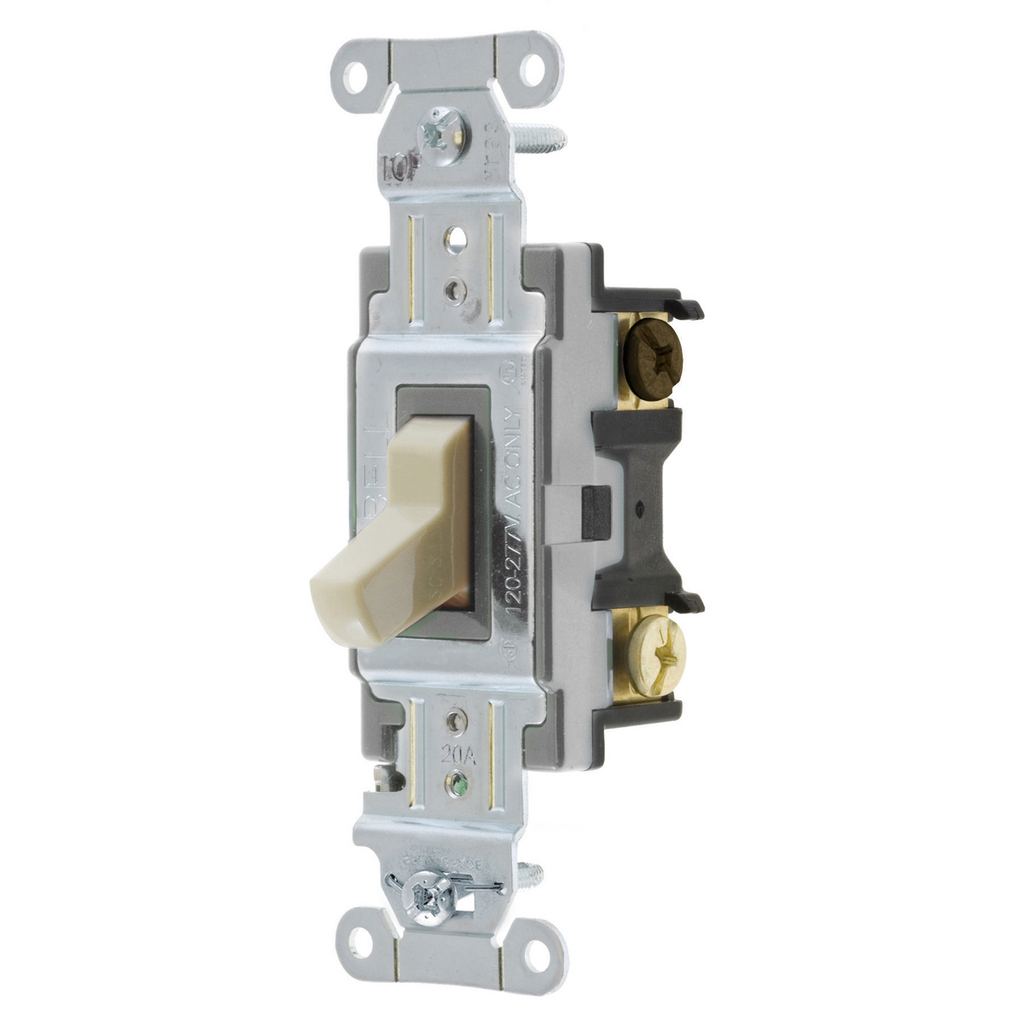

Hubbell Wiring Devices CSB320I 20 Amp 120/277 VAC 3-Way Ivory Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$6.36/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CSB320I
North Coast Part # 485409

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.83 in
  • Industry Standard(s): UL Listed
  • Length: 4.18 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: SPDT
  • Amperage Rating: 20 A
  • Color: Ivory
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.18 in x 1.49 in x 1.83 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Width: 1.49 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358515422
Item Long Description Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Ivory
GTiN 00783585154220
Length 4.18 in
Width 1.49 in
Size 4.18 in x 1.49 in x 1.83 in
Color Ivory
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Standard, 3-Way, 2-Position
Material Nylon
Product Series General Purpose
Applications Commercial Spec Grade
Height 1.83 in
Weight 0.15 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Grade Commercial Specification
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action SPDT
