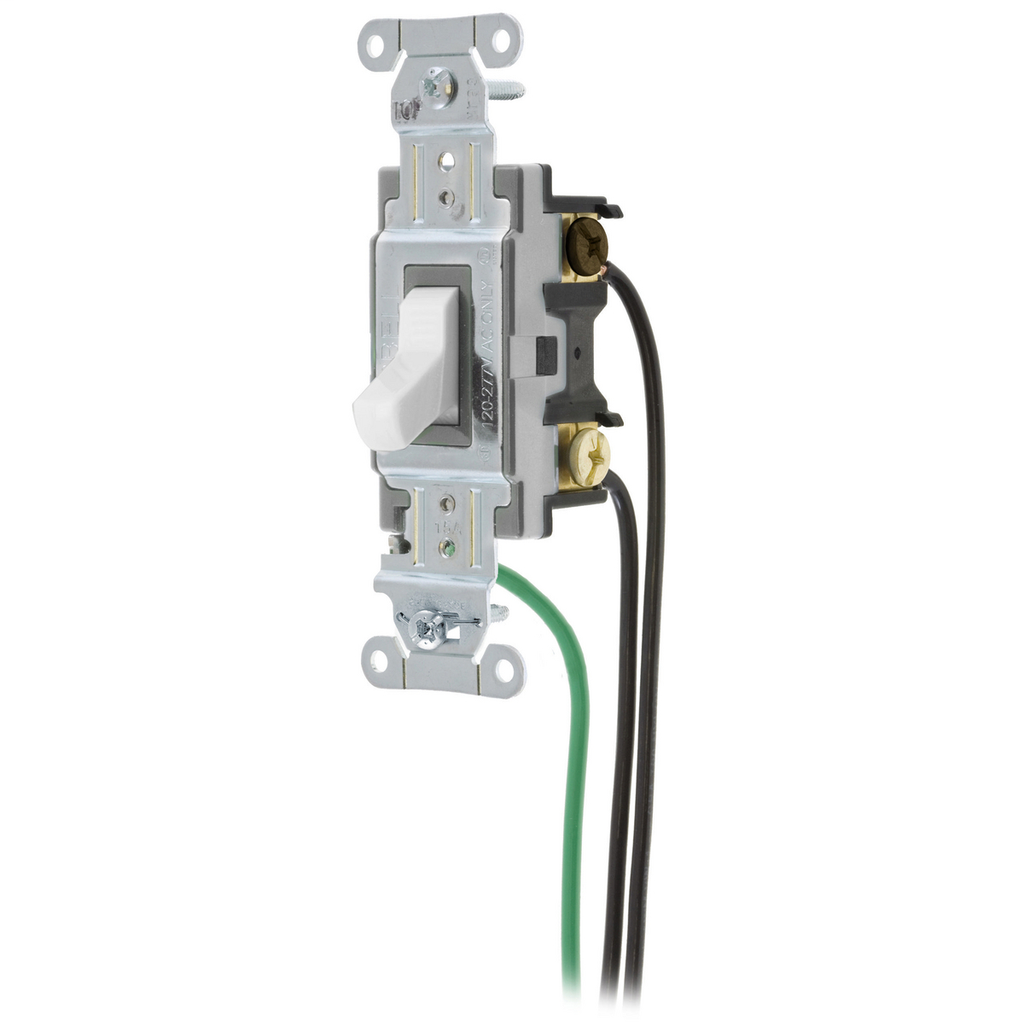

HWDK CSL415W SWITCH, SPEC, 4W, 15A
$24.90/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CSL415W
North Coast Part # 1611409

Features

  • Labor Saving
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle

Specifications

General

  • Action: DPDT
  • Application: 8" #12 AWG THHN
  • Color: White
  • Item Type: Four Way Pre-Wired Toggle Switch
  • Material: Nylon
  • Number Of Poles: Double Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 15A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: General Purpose
  • Style: Four Way
  • Type: Toggle
  • UPC: 783585187754

Dimensions

  • Dimensions: 4.18 in x 1.34 in x 1.83 in
  • Height: 1.83 in
  • Length: 4.18 in
  • Width: 1.34 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Pre-Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 50

Overview

UPC 78358518775
GTiN 00783585187754
Length 4.18 in
Width 1.34 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type General Purpose Switches
Material Nylon
Product Series General Purpose
Applications Pre-Wired Commercial Spec Grade
Height 1.83 in
Wattage 4,155 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 50
TC Connection Wire Leads
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Contact Rating Per UL 20
Number of Poles 2 Pole
Enclosure None
Operating Cycles 50k
Sub Brand AC Toggle Switches
Standard UL
