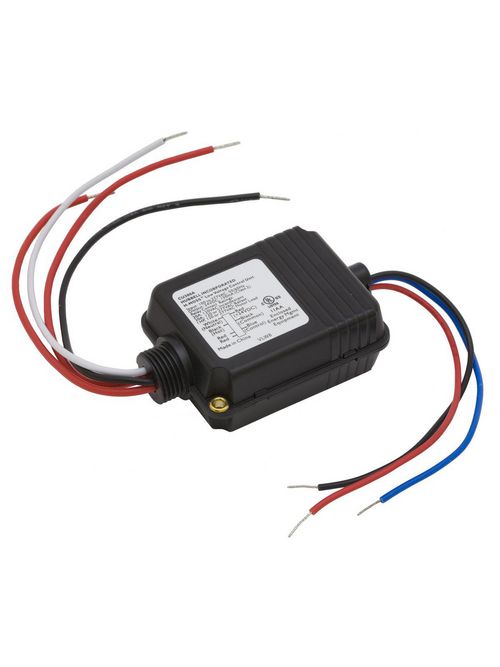

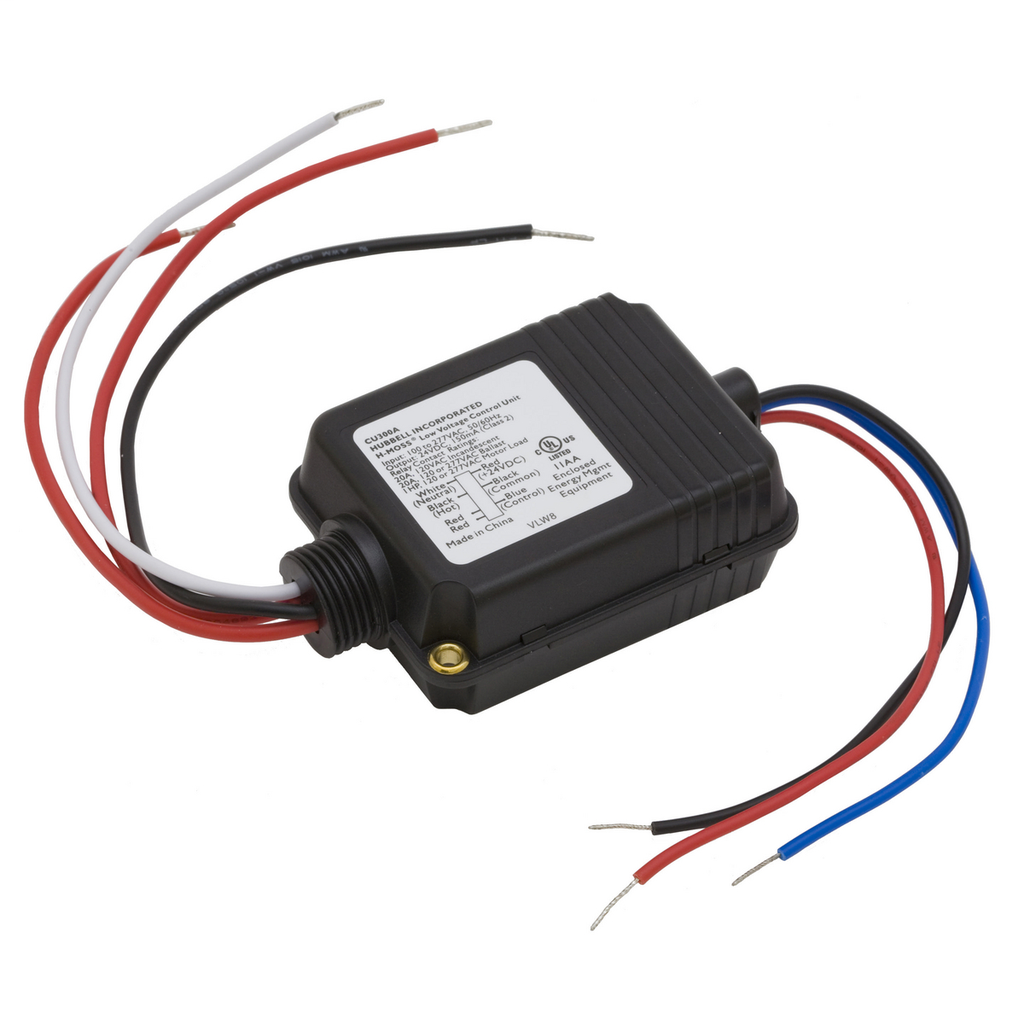

Hubbell Wiring Devices CU300A 120/277 VAC Occupancy Sensor Control Unit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$44.12/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # CU300A
North Coast Part # 551329

Features

  • Automatic ON operation
  • Automatic Voltage Detection eliminates the need for specialized wiring
  • Zero Arc Point Switching Minimizes relay contact
  • Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity.
  • Plenum rated
  • Standard Product

Specifications

  • Country of Origin: CN
  • Dimensions: 3.69 in x 2.33 in x 1.36 in
  • Each - Height: 3.300 in
  • Each - Length: 4.800 in
  • Each - Width: 2.300 in
  • Height: 1.36 in
  • Humidity: 0% to 95% non-condensing relative humidity
  • Industry Standard(s): ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
  • Length: 3.69 in
  • Performance: Electrical - AT Sensor/AAR Capacity - 1 to 4 combined;Electrical - Load Capacity - Incandescent - 0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 277V Ballast- 0 to 5540 watts;Electrical - Power Output - 24V DC, 150mA;Electrical - Power Supply - 120-277V AC, 50/60Hz;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C), 0% to 90% non condensing relative humidity;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 90% non condensing relative humidity
  • Show Add To ProjectList: Yes
  • Storage Temperature Range: -20°F to 150°F (-29°C to 65°C)
  • Application: For Use with 24V DC Sensors
  • Color: Black
  • Control Output: Relay Contacts
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Load: Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
  • Operating Cycles: 6,000 Cycles Minimum
  • Operating Temperature: 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
  • Size: 3.69 in x 2.33 in x 1.36 in
  • Special Features: Standard Product
  • Standard: ASHRAE 90.1 Compliant; cULus Listed To UL916; UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
  • Type: Accessories
  • Voltage Rating: 24 VDC
  • Voltage Rating Description: 24V DC
  • Width: 2.33 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358518100
Item Long Description Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors
GTiN 00783585181004
Length 3.69 in
Width 2.33 in
Color Black
Operating Temperature 32 - 104 F
Voltage 24 Volt
Type Accessories
Material Thermoplastic
Product Series Dual,Ultrasonic,Passive Infrared
Applications For use with 24V DC Sensors
Height 1.36 in
Family Brand Name Hubbell Wiring Device Kellems
Operating Cycles 6000
Sub Brand H-Moss
Standard ASHRAE 90.1,CULus,UL2043 Plenum Rated Per NEC 2014 300.22(C)(3),UL916
TC Connection Screw
Blade Dimensions 3.69 in L x 2.33 in W x 1.36 in H
Load Type 0 - 1800 W Incandescent, 0 - 2400 W 120 V Ballast, 0 - 5540 W 277 V Ballast
Size 3.69 in x 2.33 in x 1.36 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
