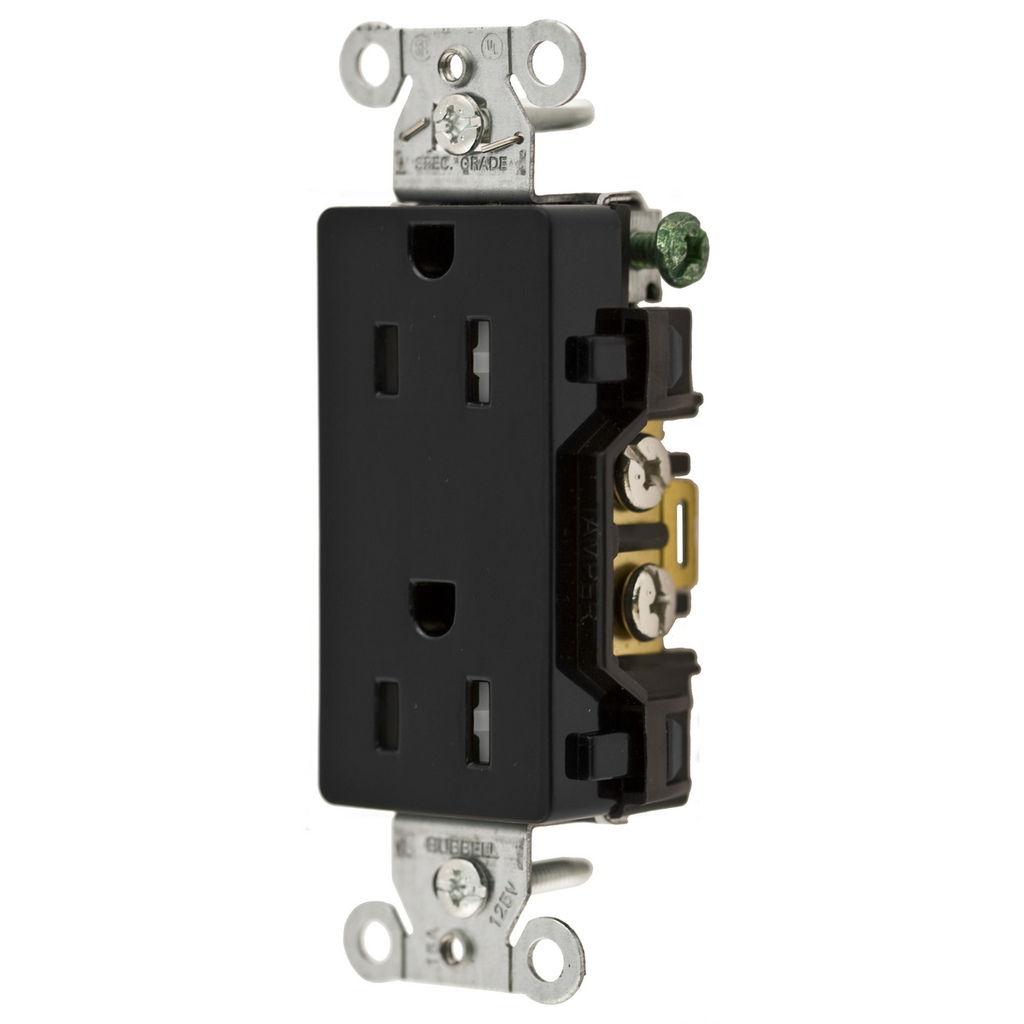

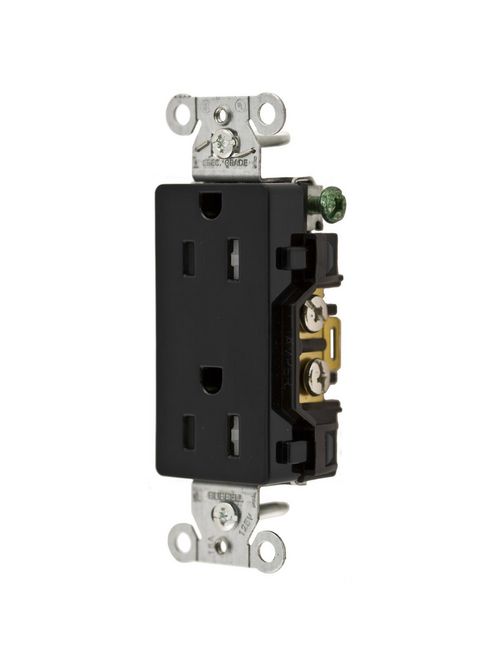

HWDK DR15BLKTR TAMP RES, DECO FACE,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$7.03/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DR15BLKTR
North Coast Part # 877644

Features

  • Tamper-resistant shutter complies with national electrical code requirements
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts

Specifications

General

  • Application: Commercial Specification Grade
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Decorator Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Style Line Decorator
  • Type: Pre-Wired, Tamper-Resistant
  • UPC: 783585144344

Dimensions

  • Dimensions: 1.56 in x 1.14 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.56 in
  • Weight: 0.15 lb
  • Width: 1.14 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358514434
GTiN 00783585144344
Length 1.56 in
Width 1.14 in
Size Standard
Color Black
Voltage 125 Volt
Type Traditional, Temper-Resistant, Decorator
Material Thermoplastic
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Height 3.28 in
Weight 0.15 lb
Wire Size 14-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Conductor Size 14-12 AWG
Mounting Type Screw
Standard C22.2,CSA,No. 42,UL498 File No. E2186,NEMA WD-6,UL
Connection Type Back and Side Wired
Grounding Self
