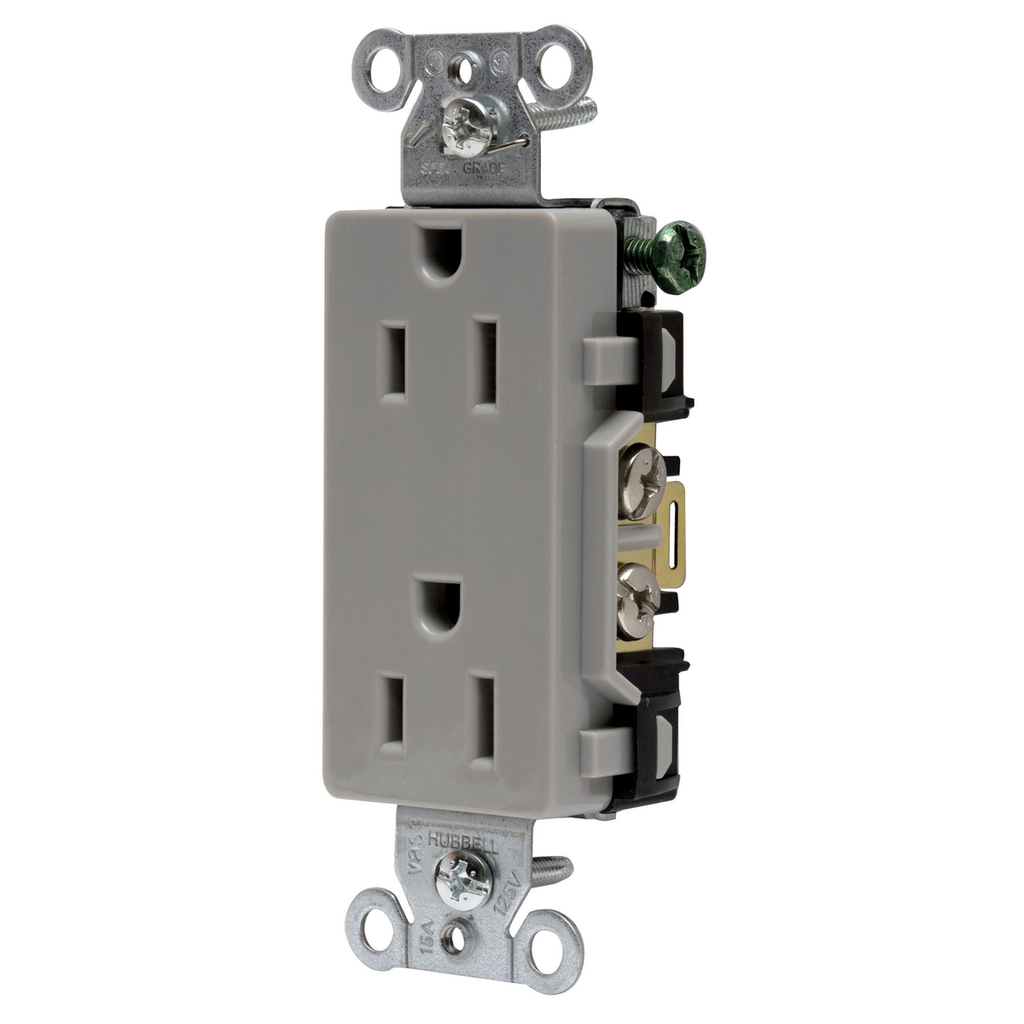

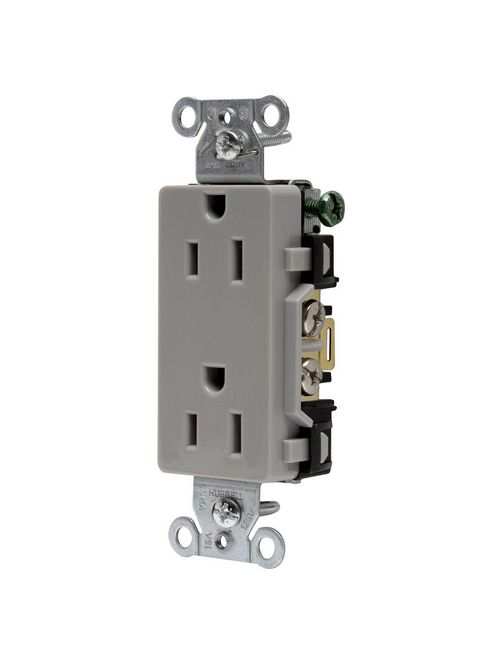

HWDK DR15GRY DECO RCPT, COMM GRD, 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$7.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DR15GRY
North Coast Part # 424811

Features

  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
  • Self Grounding

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 1.29 in x 1.06 in x 3.28 in
  • Each - Height: 1.200 in
  • Each - Length: 4.200 in
  • Each - Width: 1.600 in
  • Height: 3.28 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 1.29 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Amperage Rating: 15 A
  • Application: Commercial Specification Grade
  • Color: Gray
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 1.29 in x 1.06 in x 3.28 in
  • Special Features: Self Grounding
  • Standard: Certified to CSA, C22.2, No. 42Fed. Spec. W-C-596NEMA® WD-6 CompliantUL Listed to UL498 File No. E2186
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.06 in
  • Nema Rating: 5-15R
  • Number Of Wires: 3-Wire
  • Connectivity: Back and Side Wired
  • Current Rating: 15 A
  • Display Size: Standard Sized Product
  • Weight: 0.2 lb
  • Item Type: Decorator Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Commercial Specification Grade
  • Style: Style Line Decorator

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585127811
Length 1.29 Inch
Width 1.06 in
Size 1.29 in x 1.06 in x 3.28 in
Color Gray
Voltage 125 Volt
Type Decorator
Material Nylon
Conductor Size 14 - 12 AWG
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Mounting Type Screw
Height 1.2 Inch
Grade Commercial Specification
Weight 0.2 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Self
TC Connection Back and Side Wired
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Product UPC 78358512781
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Country of Origin China
