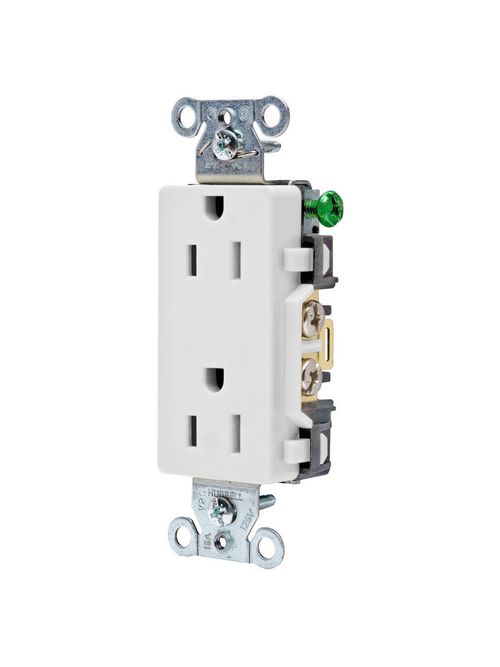

Hubbell Wiring Devices DR15WHI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Decorator Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$7.66/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DR15WHI
North Coast Part # 424810

Features

  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts

Specifications

General

  • Application: Commercial Specification Grade
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Decorator Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Commercial Specification Grade
  • Style: Style Line Decorator
  • Type: Standard Duplex
  • UPC: 783585127828

Dimensions

  • Dimensions: 1.29 in x 1.06 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.29 in
  • Weight: 0.2 lb
  • Width: 1.06 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358512782
GTiN 00783585127828
Length 1.29 in
Width 1.06 in
Size Standard
Color White
Voltage 125 Volt
Type Decorator
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Commercial Specification Grade
Applications Commercial Specification Grade
Mounting Type Screw
Height 3.28 in
Grade Commercial
Weight 0.2 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
