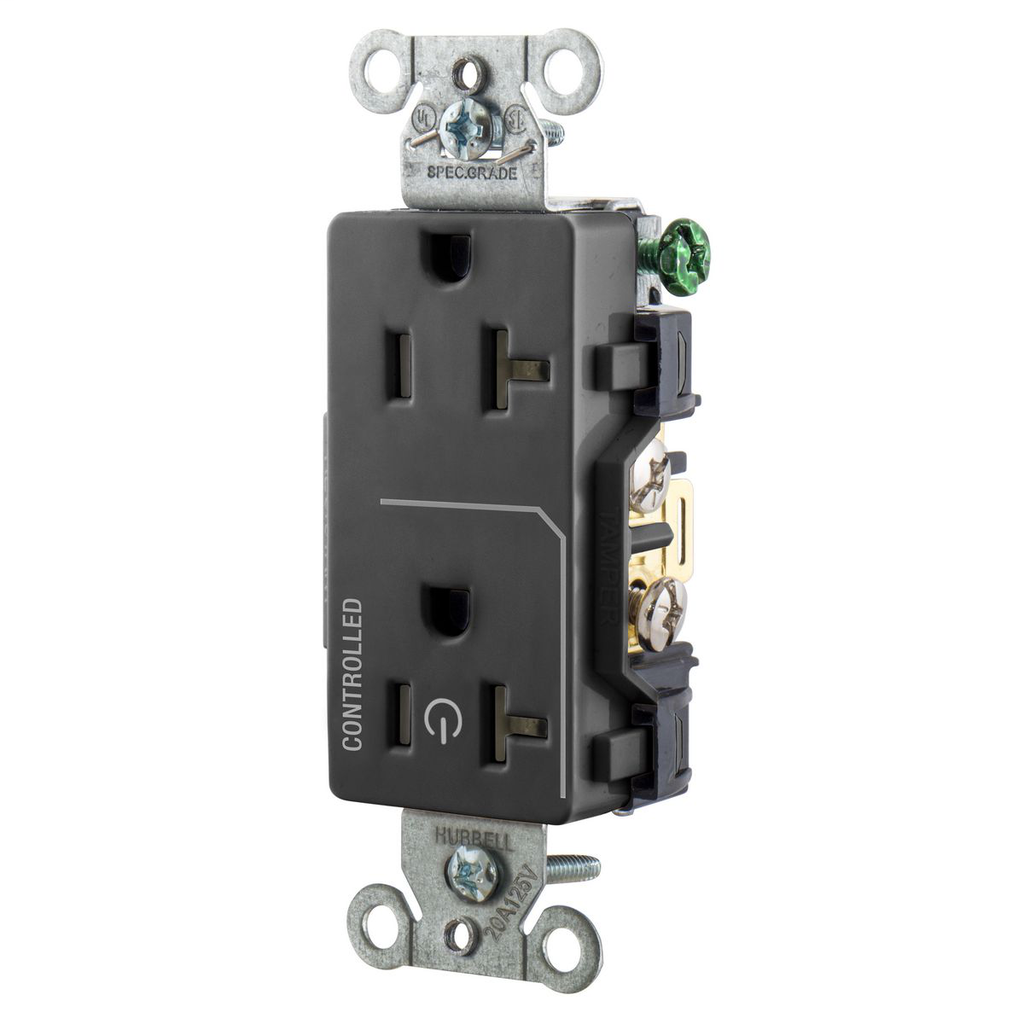

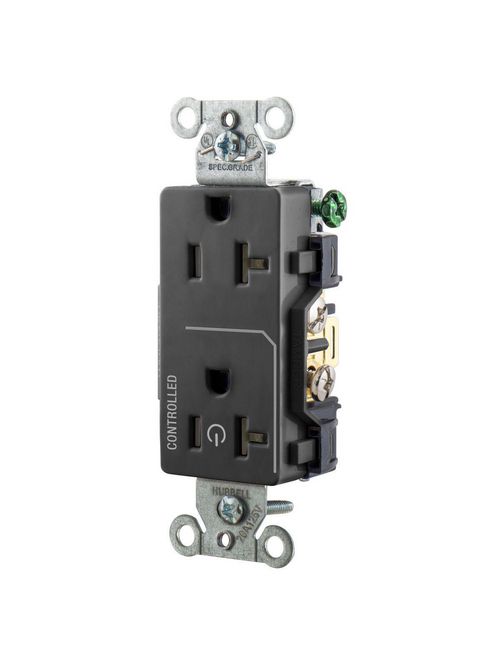

HWDK DR20C1BLK 1/2 CONTROLLED 20A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$20.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DR20C1BLK
North Coast Part # 1610315

Features

  • Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
  • Half-Controlled receptacle with one face marked and the circuit tab removed
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load Logic control's or any available energy management system
  • Self Grounding

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 1.32 in x 0.83 in x 3.28 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 3.28 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 1.32 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Commercial Specification Grade
  • Color: Black
  • Dielectric Strength: Withstands 2,000V minimum
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 1.32 in x 0.83 in x 3.28 in
  • Special Features: Self Grounding
  • Standard: CSA Certified 22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: One Controlled Face, Split Circuit
  • Voltage Rating: 125 V
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 0.83 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358555143
Item Long Description Straight Blade Devices, Receptacles, Decorator Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Black
GTiN 00783585551432
Length 1.32 in
Width 0.83 in
Color Black
Voltage 125 Volt
Type One Controlled Face, Split Circuit
Material Nylon
Product Series Controlled
Height 3.28 in
Weight 0.2 lb
Family Brand Name Hubbell Wiring Device Kellems
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Standard 22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Size 1.32 in x 0.83 in x 3.28 in
Applications Commercial Specification Grade
Wire Size 14-10 AWG
Dielectric Strength Withstands 2,000V minimum
