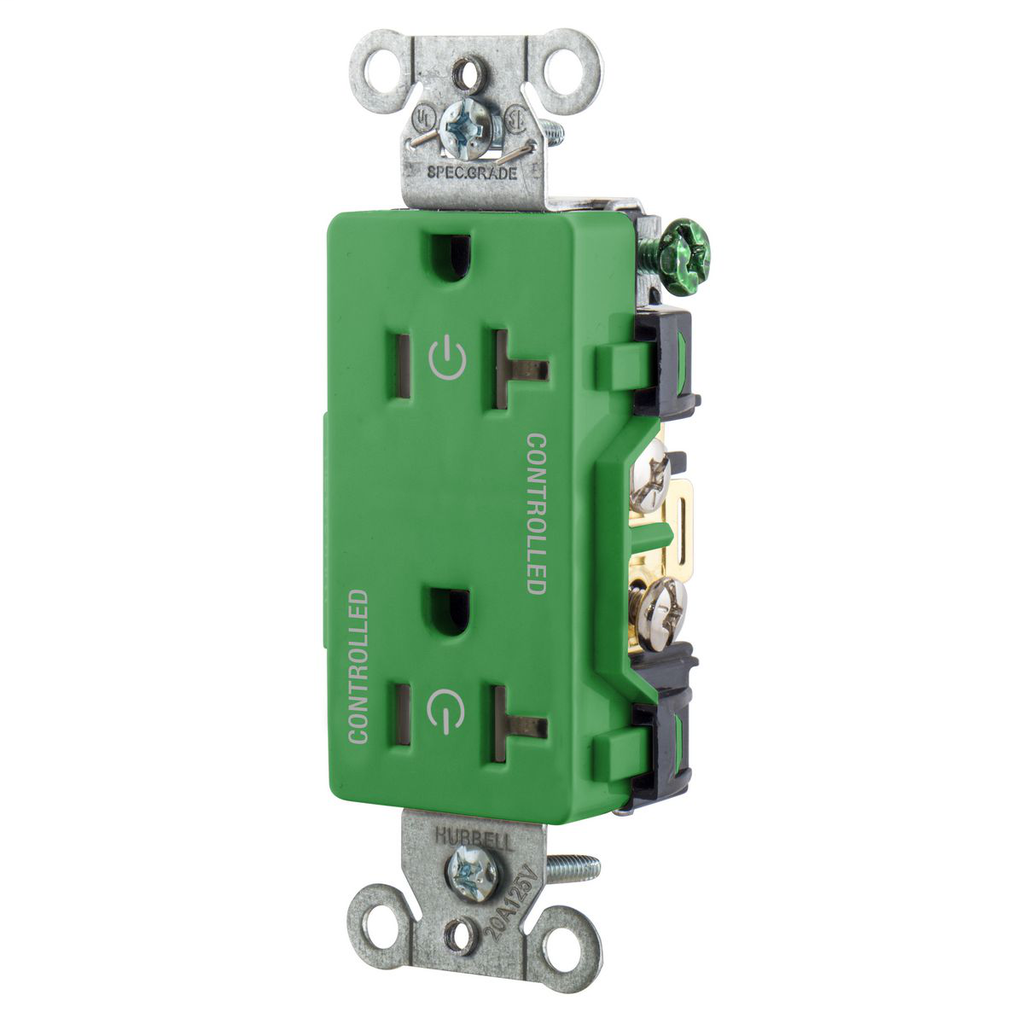

HWDK DR20C2GN 2/2 CONTROLLED 20A 12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$19.35/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DR20C2GN
North Coast Part # 1612538

Features

  • Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
  • Markings can be read regardless of mounting orientation
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load Logic control's or any available energy management system

Specifications

General

  • Application: Commercial Specification Grade
  • Color: Green
  • Horsepower - Maximum: 1
  • Item Type: Style Line Decorator
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Controlled
  • Style: Style Line Decorator
  • Type: Two Controlled Faces
  • UPC: 783585551494

Dimensions

  • Dimensions: 1.32 in x 0.83 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.32 in
  • Weight: 0.2 lb
  • Width: 0.83 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified 22.2, No. 42 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358555149
GTiN 00783585551494
Length 1.32 in
Width 0.83 in
Color Green
Voltage 125 Volt
Type Two Controlled Faces
Material Nylon
Product Series Controlled
Height 3.28 in
Weight 0.2 lb
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Standard 22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Size 1.32 in x 0.83 in x 3.28 in
Applications Commercial Specification Grade
Wire Size 14-10 AWG
Dielectric Strength Withstands 2,000V minimum
