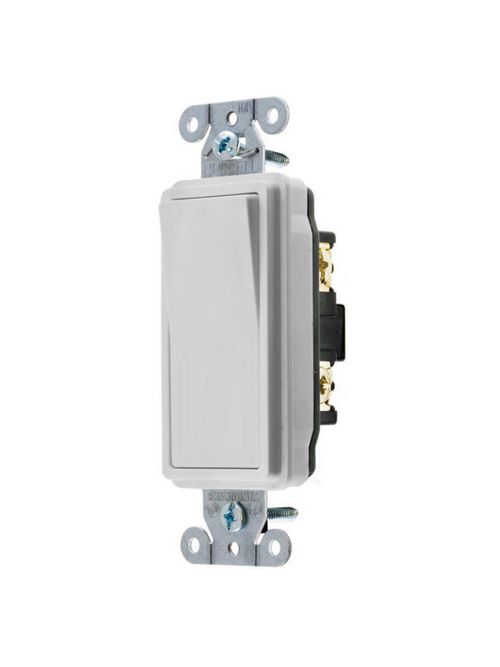

HCI DS115OW SWITCH, DECO SER, SP, 1
Product image thumbnail 0
Product image thumbnail 1
$5.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DS115OW
North Coast Part # 485438

Features

  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple

Specifications

General

  • Color: Office White
  • Item Type: Single Pole Style Line Decorator Switch
  • Material: Thermoplastic
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 15A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: General Purpose
  • Style: Single Pole
  • Type: Rocker/Decorator
  • UPC: 783585151250

Dimensions

  • Dimensions: 4.28 in x 1.43 in x 1.54 in
  • Height: 1.54 in
  • Length: 4.28 in
  • Weight: 0.2 lb
  • Width: 1.43 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358515125
GTiN 00783585151250
Length 4.28 in
Width 1.43 in
Size 4.28 in x 1.43 in x 1.54 in
Color White
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Rocker, Standard
Material Thermoplastic
Terminal Type Screw
Product Series General Purpose
Applications Commercial Heavy Duty
Height 1.54 in
Weight 0.2 lb
Wattage 4155 Watt
Temperature Rating -40 C Minimum without Impact, 75 C Maximum
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Power Rating 4155 W
TC Connection Back and Side Wired
Actuator Rocker
Contact Configuration 2 Position
Current 15 A
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 50000
Sub Brand AC Decorator Switches
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
