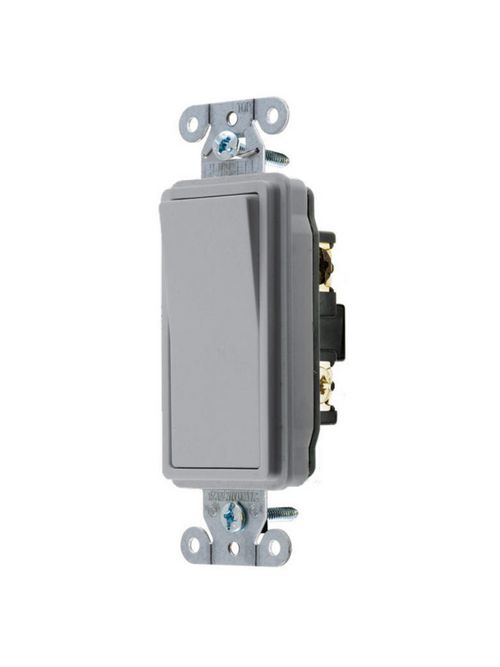

HCI DS315GY SWITCH, DECO SER, 3W, 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6.72/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DS315GY
North Coast Part # 485439

Features

  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.91 in x 1.41 in x 1.01 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.01 in
  • Industry Standard(s): UL Listed
  • Length: 3.91 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: SPDT
  • Amperage Rating: 15 A
  • Color: Gray
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 3.91 in x 1.41 in x 1.01 in
  • Standard: UL Listed
  • Type: Rocker/Decorator
  • Voltage Rating: 120-277 VAC
  • Width: 1.41 in

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585154411
Length 3.91 Inch
Width 1.41 in
Size Standard Sized
Color Gray
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type 3-Way, General Purpose, Standard
Material Thermoplastic
Terminal Type Screw
Product Series General Purpose
Applications Commercial Heavy Duty
Height 1.01 Inch
Weight 0.2 lb
Wattage 4155 Watt
Temperature Rating -40 C Minimum without Impact, 75 C Maximum
Family Brand Name Hubbell Wiring Device Kellems
Power Rating 4155 W
TC Connection Back and Side Wired
Actuator Rocker
Contact Configuration 2 Position
Current 15 A
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 50000
Sub Brand AC Decorator Switches
Product UPC 78358515441
Standard UL
Country of Origin China
