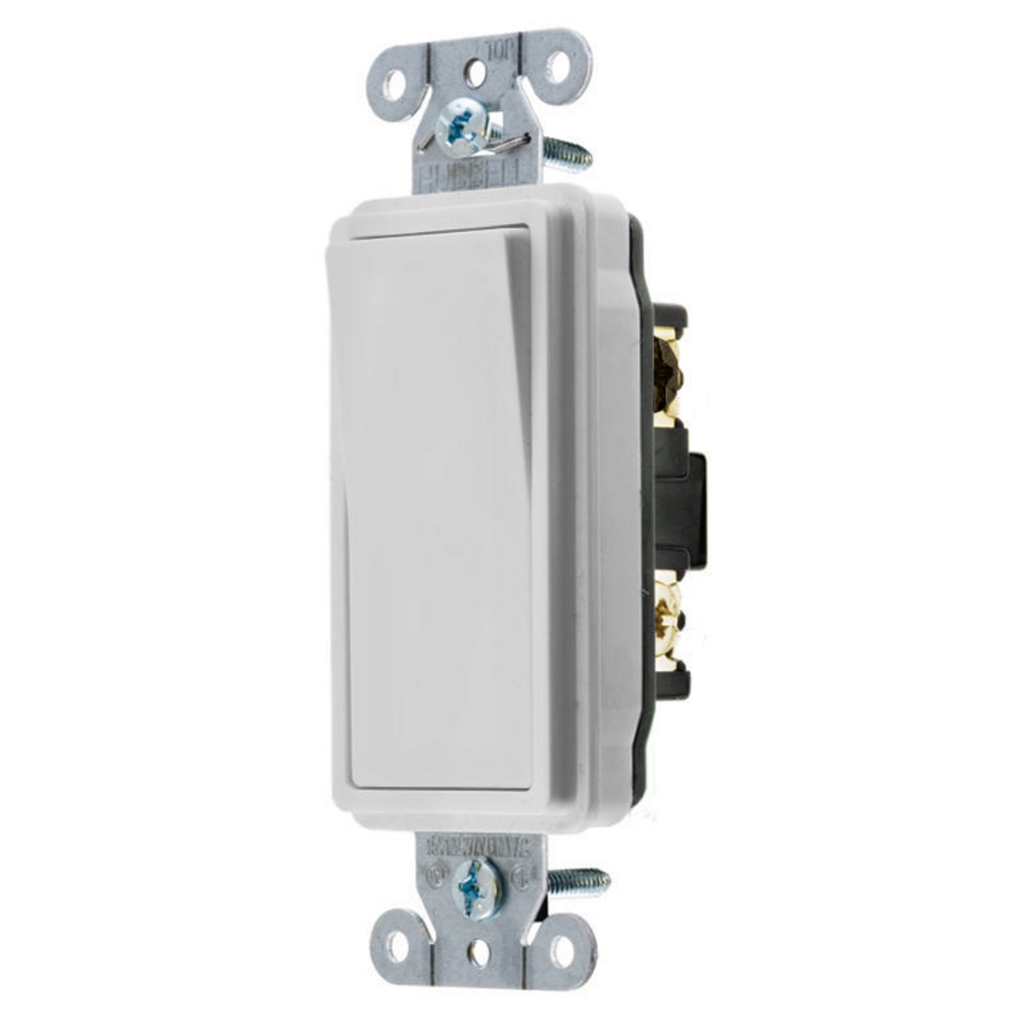

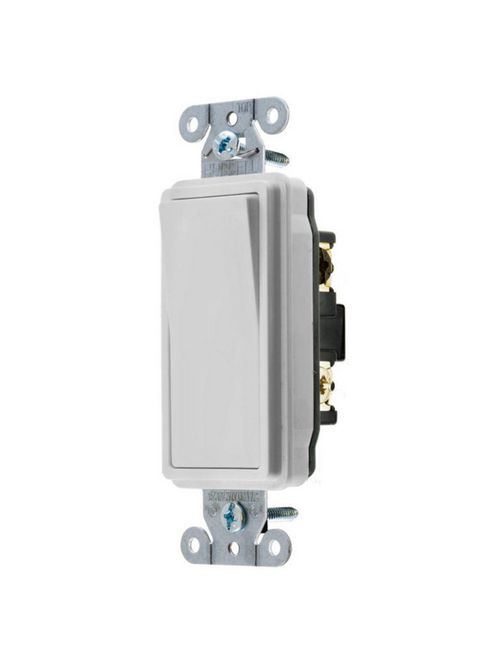

HCI DS315OW SWITCH, DECO SER, 3W, 1
$5.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # DS315OW
North Coast Part # 485441

Features

  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple

Specifications

General

  • Action: SPDT
  • Color: Office White
  • Item Type: Three Way Style Line Decorator Switch
  • Material: Thermoplastic
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 15A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: General Purpose
  • Style: Three Way
  • Type: Rocker/Decorator
  • UPC: 783585151281

Dimensions

  • Dimensions: 3.91 in x 1.41 in x 1.01 in
  • Height: 1.01 in
  • Length: 3.91 in
  • Weight: 0.2 lb
  • Width: 1.41 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358515128
GTiN 00783585151281
Length 3.91 in
Width 1.41 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type 3-Way, General Purpose, Standard
Material Thermoplastic
Terminal Type Screw
Product Series General Purpose
Applications Commercial Heavy Duty
Height 1.01 in
Weight 0.2 lb
Wattage 4.155 Watt
Temperature Rating -40 C Minimum without Impact, 75 C Maximum
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Power Rating 4155 W
TC Connection Back and Side Wired
Actuator Rocker
Contact Configuration 2 Position
Current 15 A
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 1 Pole
Enclosure None
Indicator None
Operating Cycles 50000
Sub Brand AC Decorator Switches
Standard UL
