Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # FHC1023
North Coast Part # 429903

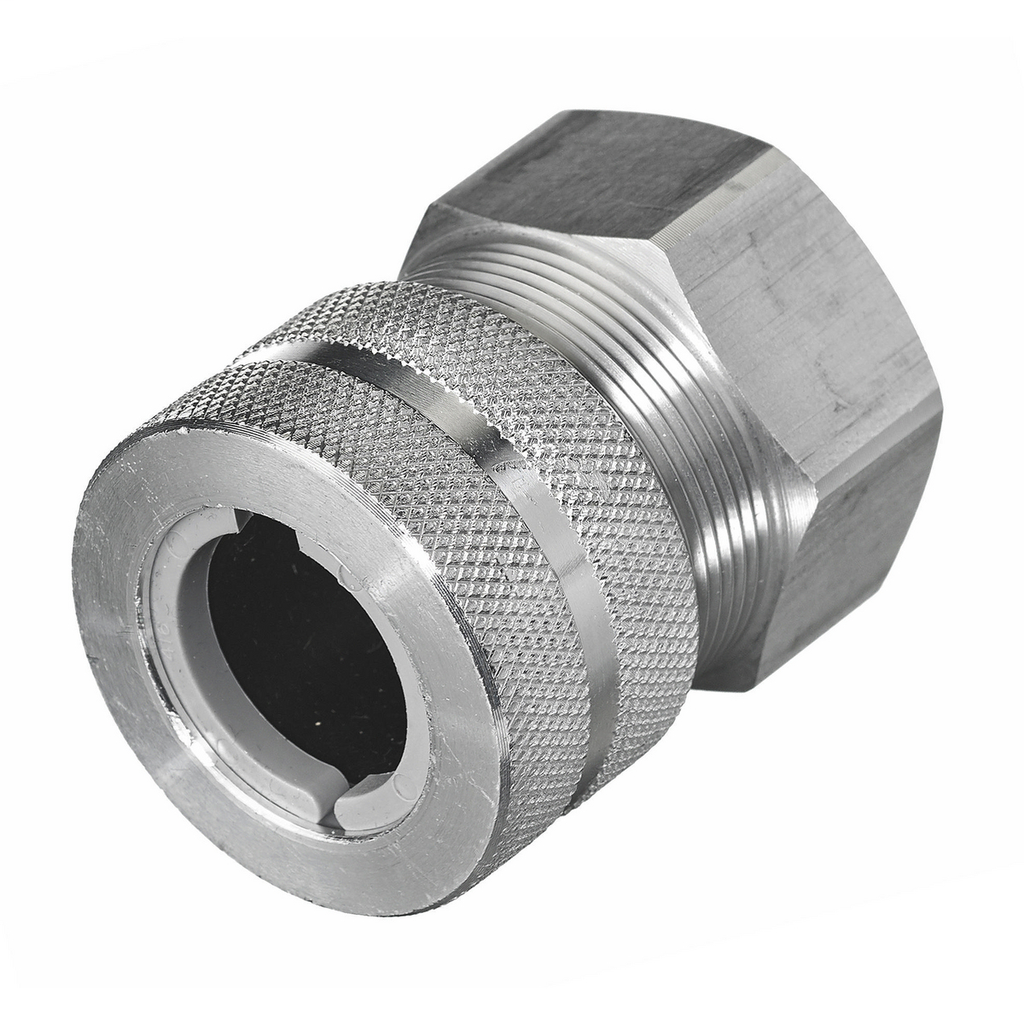

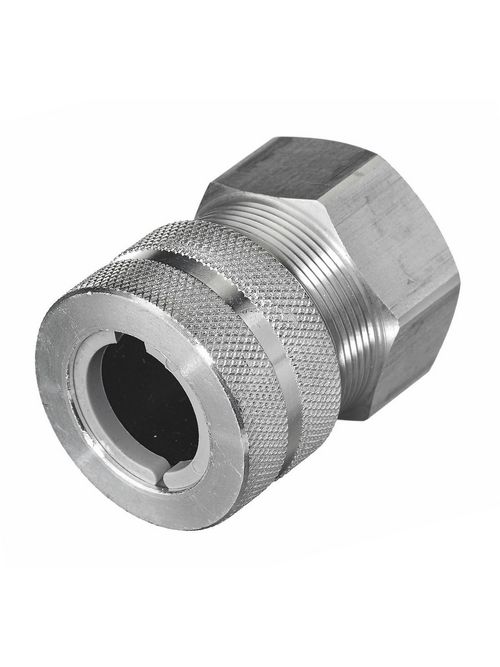

  • Machined aluminum straight female connector
  • Standard Product


  • Country of Origin: PR
  • Each - Height: 1.600 in
  • Each - Length: 1.000 in
  • Each - Width: 1.000 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: Straight Female- Form 2
  • Conductor Range: 0.38-0.5 in (9.7-12.7 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Female


  • EU RoHS Indicator: Yes


UPC 78358520323
Item Long Description Kellems Wire Management, Cord Connectors, Straight Female .38-.50", 1/2", Aluminum
GTiN 00783585203232
Length 1.000 in
Finish Machined
Width 1.000 in
Size 1/2" NPT IN
Type Straight, Female, Form 2
Material Aluminum
Number of Conductors Single
Conductor Size 0.38 - 0.5 in
Product Series Standard Duty
Applications Straight Female- Form 2
Height 1.600 in
Trade Size 1/2 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
