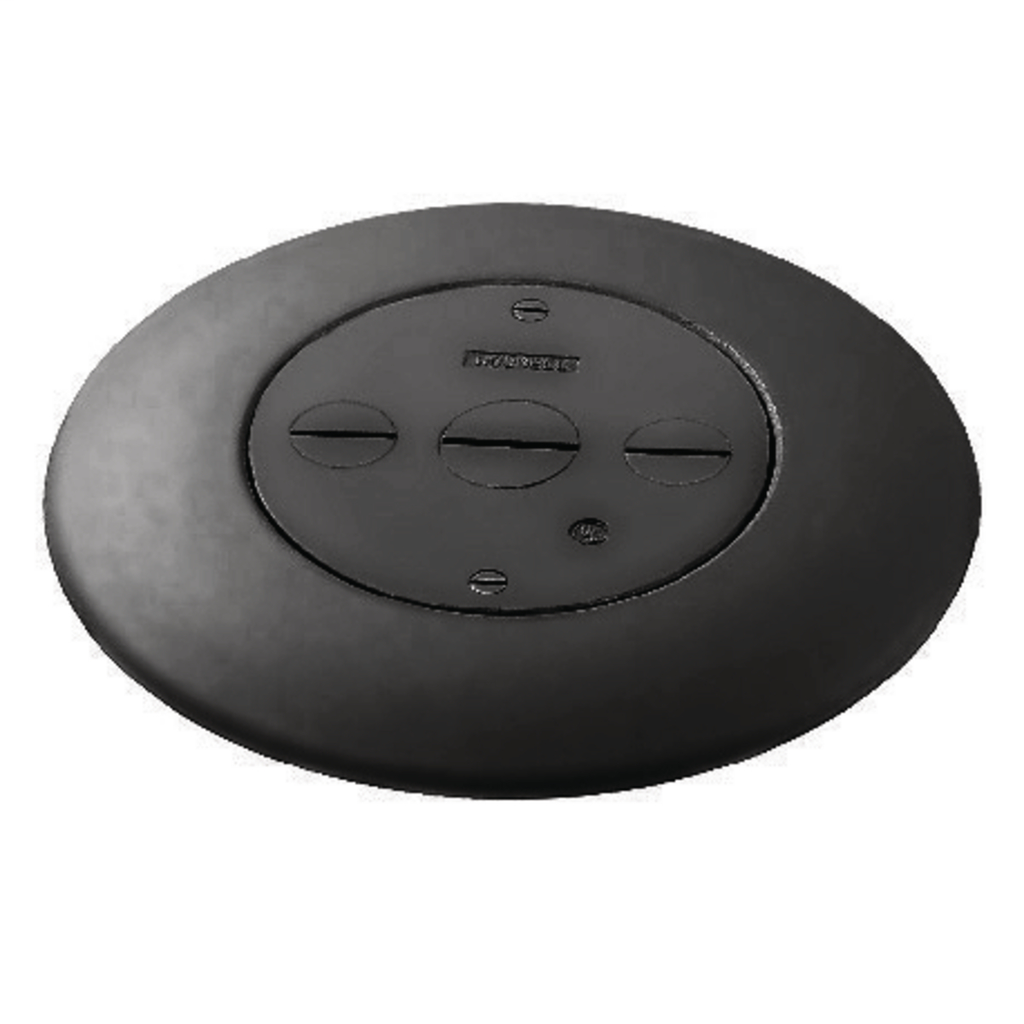

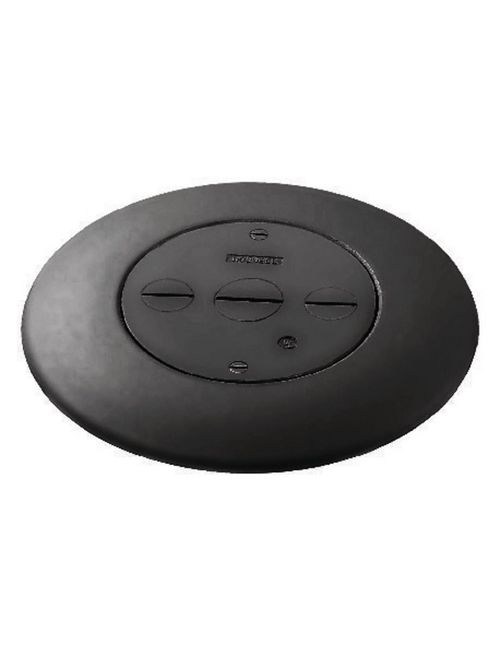

Hubbell Wiring Devices FRF3BK Black 3-Service Poke-Through Furniture Feed Plate
$140.92/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # FRF3BK
North Coast Part # 14059

Features

  • For use with PT73SD
  • Single Service Furniture Feed Fitting
  • Aluminum Cover Flange
  • Black Finish
  • (1) 3/4" Threaded Hub for Power, (2) 1/2" Hubs for Low Voltage

Specifications

General

  • Application: Three Service Furniture Flange and Cover
  • Color: Black
  • Construction: Fabricated
  • Cover Type: Furniture Feed
  • EU RoHS Indicator: No
  • Finish Type: Black
  • Item Type: 3" Fire-Rated Poke-Through Component
  • Material: Aluminum
  • Material - Mounting Hardware: Mounting Hardware Included
  • Number Of Outlets: (1) 3/4" & (2) 1/2" Threaded Hub Hub 3 Service
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Fire Rating - For use in 1, 1 1/2, or 2 hour rated unprotected reinforced floors | Electrical - UL Installation - Min. of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area | Mechanical - Wiring Capacity - Six #12 AWG and two #10 AWG type THHN wires
  • Style: Cover Flanges
  • Type: Service Fittings
  • UPC: 783585109626

Dimensions

  • Display Size: Standard Sized Product

Conductor Related

  • Cable Entry: Threaded Hubs

Certifications and Compliance

  • Industry Standard(s): cULus Listed | Meets ADA Standards | UL 514A Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358510962
GTiN 00783585109626
Length 7.662 in
Width 7.560 in
Size Standard Sized Product
Color Black
Type Fabricated
Material Aluminum
Applications Three Service Furniture Flange and Cover
Mounting Type 3 in Core Hole in Concrete Floor
Height 2.410 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Fabricated
Carton Qty 10
Cable Entry 0.5/0.75 in
Sub Brand 3" Core Hole Series
Standard CULus,UL 514A,Meets ADA Standards
