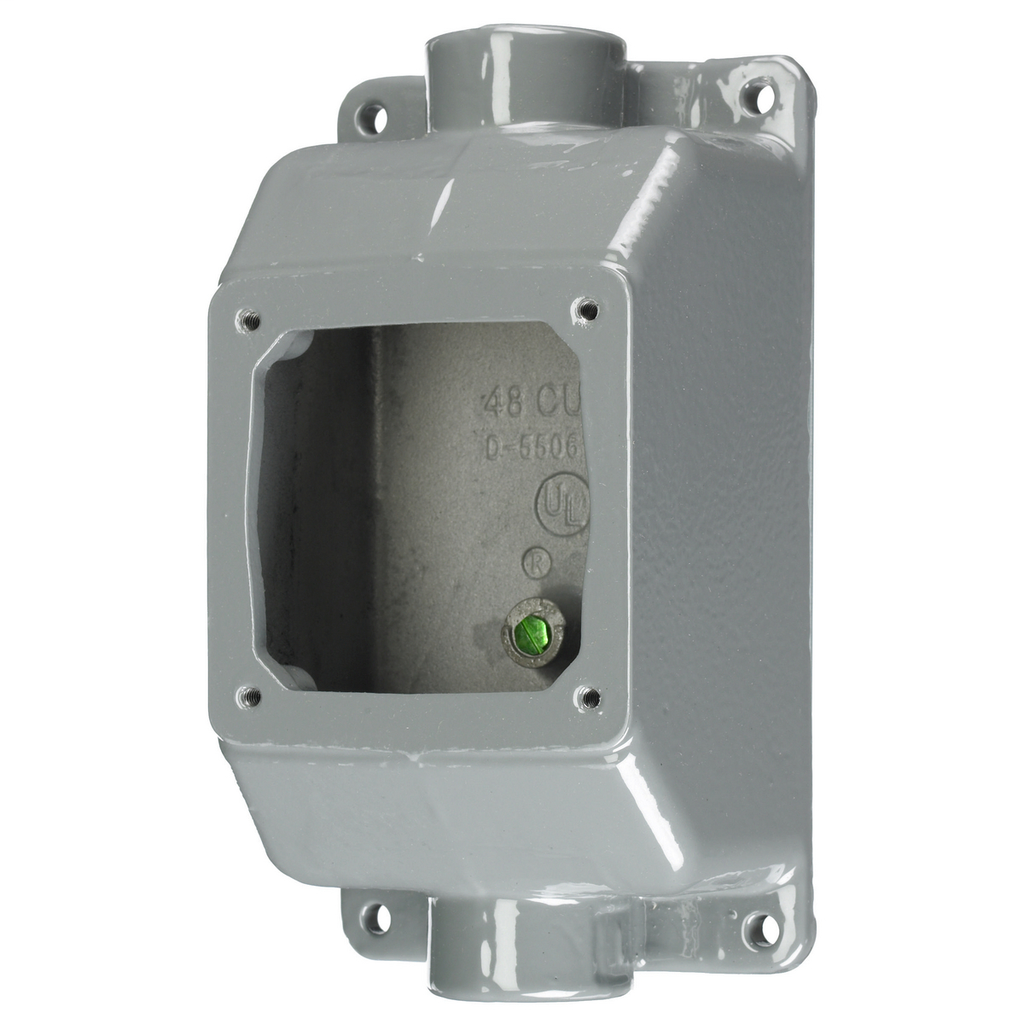

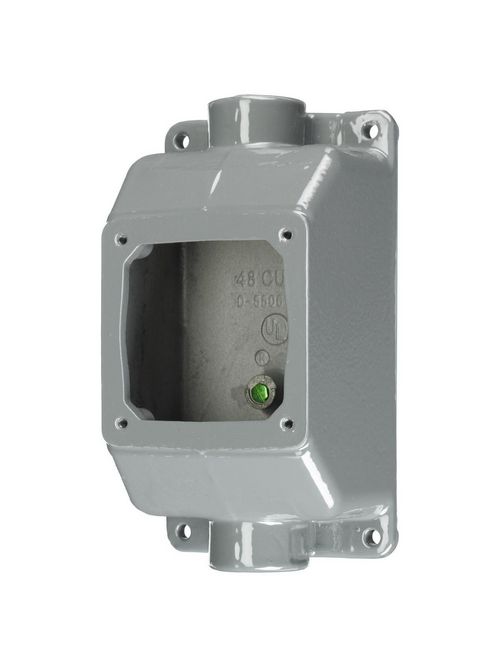

HWDK FT302W PS, IEC, F-THRU BOX, 20
$181.21/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # FT302W
North Coast Part # 18300

Specifications

General

  • Application: Metallic
  • Color: Gray
  • Construction: Cast
  • Item Type: Mounting Box
  • Knockouts: 1" NPT Hub
  • Material: Aluminum
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Outlets: Accepts 1-Device
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Style: For 20 And 30A Watertight Safety Shroud Receptacles And Inlets
  • Temperature Range: Limited By Device
  • Type: Back Box
  • UPC: 783585750255

Dimensions

  • Dimensions: 7.14 in x 3.06 in x 4.5 in
  • Display Size: For 16, 20, 30 and 32 Amp Devices
  • Height: 4.5 in
  • Length: 7.14 in
  • Weight: 2.45 lb
  • Width: 3.06 in

Conductor Related

  • Cable Entry: Through Hub

Logistics

  • Carton Quantity: 10

Overview

UPC 78358575025
GTiN 00783585750255
Length 7.14 in
Width 3.06 in
Size For 16, 20, 30 and 32 Amp Devices
Color Gray
Type Rectangular, Straight Feed-Thru, 1-Device
Material Cast Aluminum
Applications Straight Feed-Thru
Mounting Type Screw
Height 4.5 in
Weight 2.45 lb
Family Brand Name Hubbell
Construction Cast
Carton Qty 10
Cable Entry Through Hub, 1 in NPT Hub
Used With IEC Pin and Sleeve 16, 20, 30 and 32 A Devices
Sub Brand Shrouded Watertight Twist-Lock and IEC Pin and Sleeve
