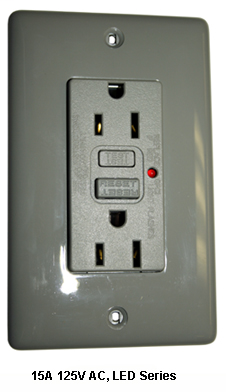

HUBW GF15ILU 15A 125V IVORY GFCILED USA
Product image thumbnail 0
Product image thumbnail 1
$30.15/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GF15ILU
North Coast Part # 681469

Specifications

  • Packaging: Single
  • Color: ivory
  • Receptacle Grade: Commercial
  • Trip Level: 4-6 mA
  • Voltage: 125V AC
  • Trip Time: 0.025 seconds
  • Wiring Style: External Backwire
  • Amperage Range: 15A/20A, 20 Amps Feed Thru
  • Terminal Accommodations: #14 -10 AWG stranded or solid copper conductors only.
  • Max Humidity: 0.95
  • Amperage: 15A
  • Voltage Range: 120V AC +10% -15%
  • Note:: GFCI Receptacles should not be used in critical care patient areas or for electrical life support equipment.
  • Operating Temp: Deg F -30 to 150 (Deg C -30 to 66)
  • Weight in LBs: 0.3
  • Receptacle Version: LED Indicator Series Receptacle
  • GFCI Product Type: receptacles
  • Max Interrupting Capacity: 10,000 Amps
  • Codes and Standards: Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
  • Frequency: 60Hz

Color

GFCI Product Type

NEMA Configuration

Product Drawings / Installation Instructions

Product

Instructions

Overview

UPC 88377838901
Color Ivory
Operating Temperature -30 To 150 F
Voltage 125 Volt
Grade Commercial
Weight 0.3 lb
Frequency 60 Hz
Family Brand Name Hubbell
Amperage 15 Amp
