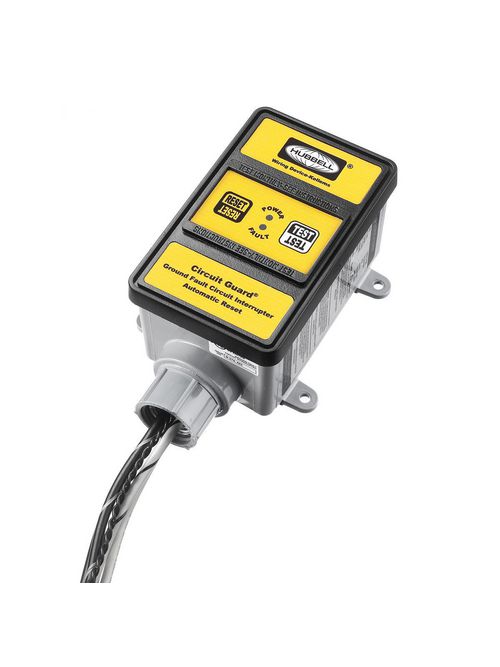

HCI GFHW13105 HW GFCI, 30A 120V, AU
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$390.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFHW13105
North Coast Part # 758117

Features

  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral

Specifications

General

  • Application: Wire Into Circuit
  • Color: Yellow
  • Construction: Fabricated
  • EU RoHS Indicator: No
  • Item Type: Industrial Grade
  • Material - Insulation: Thermoplastic
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure | Electrical - Operating Voltage Range - 85% to 110% | Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC | Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency | Environmental - Construction - Industrial grade design | Environmental - Housing Rating - UL Type 4X | Environmental - Leakage Current - At 93% Humidity leakage current is zero | Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F. | Environmental - Type - Class A GFCI
  • Series: Extra Heavy Duty
  • Style: Automatic Set
  • Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
  • Type: Hard Wired
  • UPC: 783585005232

Dimensions

  • Weight: 1.55 lb

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Hard Wired
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Voltage Rating: 120 VAC
  • Voltage Rating Description: 120 VAC

Conductor Related

  • Conductor Size: #10 AWG
  • Conductor Type: Copper
  • Number Of Conductors: 3
  • Strands: Multi

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 5

Overview

UPC 78358500523
GTiN 00783585005232
Length 24 Leads IN
Width 5.800 in
Color Yellow
Voltage 120 Volt
Type Industrial Grade, Multi Strand, Fabricated
Number of Conductors 3
Conductor Size (3) 10 AWG Copper
Product Series Extra Heavy Duty
Applications Wire into Circuit
Height 6.800 in
Weight 1.55 lb
Temperature Rating -34 to 65 C
Family Brand Name Hubbell Wiring Device Kellems
Insulation Material Thermoplastic
Conductor Material Copper
Construction Fabricated
Carton Qty 5
Current 30 A
Sub Brand Hard Wired 30A GFCI
Standard UL
Housing Material Thermoplastic
Cord Length 24 in
Reset Type Automatic
